10666 / 10561 GAC-2 UltraPro 110 Ohm Digital Audio Cable (same as 10561)


 110 Ohm AES -EBU Digital Audiocable

NEW:   same cable in dark blue color (10561) available !

GAC-2 AES Ultra Pro 10561 / 10666 (while supply lasts)   4 times Reussen shield!
Balanced 5 times shielded audio cable! Ultraflexible professional audio cable for microphones. 'Double Reussen shield', velvet matte non-light reflecting PVC-jacket material.
A unique construction new invented by Gotham design.
Each conductor is shielded with a lap shield 100% covering copper wires (7) (Reussen shield) plus a conductive separation layer (6) (aluminium coated polyester ). This conductor is twisted around conductor nr 2 and turn is hold in place with another aluminium coated layer, followed by Gotham's unique double Reussen shield. This cable is absolutely uncompromised to achieve maximum shielding possible while the flexibility and durability is still very good and the cable can be used in mobile applications as well.
The cable is built with a stabile 110 ohm impedance and can be used for analogue balanced audio signals as well as digital audio signals in the AES-EBU format. Ideal cable for accomodation of XLR-connectors with corresponding 8mm diameter cable claps

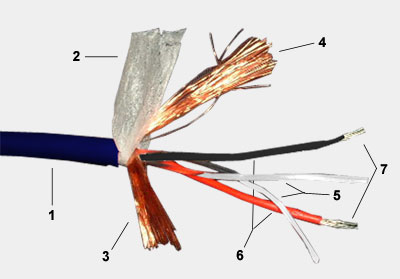

Construction:

1 = Jacket: PVC, max. Ø 8,00 mm Purpur/Violett / marine blue (10561)
2 = Over all Shield No. 1 Bare copper wires (0.10 mm) 100% coverage
3 = Over all Shield No. 2 Bare copper wires (0.10 mm) 100% coverage
4 = Layer Polyester nonwoven thermally bonded, both sides aluminium coated
5 = Seperation Filler material viscose
6 = conductor shield layer Polyester nonwoven thermally bonded, both sides aluminium coated
7 = conductor shield Bare copper wires (0.10 mm) 100% coverage
8 = Insulation Cellular PE, Ø 2.00mm
9 = Conductor Stranded bare LCOF copper wires 64 x 0.10mm (0.50 mm²) 64x38AWG = 26AWG

Technical datas:

Conductor resistance:   max 39 ohm/km
Shielding resistance:   < 28 Ohm/km
Capacitance:   Conductor/ Cond. max. 50 nF/km
Conductor/Schild   max. 135 nF/km
Impedance   110 Ohm
Test voltage:   2000 veff
Temperature range: flexi-installed: -5° to +50° C
  fix-installed: -30° to +70° C


Ordering Information:

Order No. Type Diameter Colour Spool Size Weight/
Spool
 Shipping Unit
10666 / 10561 GAC-2 AES Ultra Pro 8.0 mm purple / marine blue (10561) 100m 10.80 kg 2x100m

 .


Please inquire via contact and avoid entering all datas. You can also simply send us an email to info@gotham.ch
No minimum order!

Please see ordering Information link:
Terms: Prices are in CHF (Swiss Francs), this price is including Swiss Domestic 7.70%  VAT. Ex works Dietikon Switzerland. Packing and crate included. You can collect your order in Dietikon w/o any shipping fees.

Sold per meter and standard spools from Swiss warehouse.  *Price per meter only charged if not a full spool was ordered.

- Shipment from stock in Switzerland:  we can ship from Swiss sales office in Dietikon Switzerland. No minimum Order
Orders from Swiss warehouse can consolidate other products from our domestic range (such as connectors) and cables could be cut to order and/or even terminated with connectors.

Check possible remnant spools/leftover pieces at special prices from Swiss warehouse!
Link to Sale items


- shipment from warehouse in Germany:  stored in bonded warehouse c/o Streck Transport GmbH in Freiburg (Germany). Attention: German clients and EC clients w/o UID (Vat identification) number will be charged with 19% German VAT in addition! Minimum order for shipments from Germany warehouse is for each line item 1pc standard shipping unit or multibles thereof. Collections at warehouse possible by appintment only and with some restrictions.

**shipping unit/standard spool: The shipping units rules do only apply for orders being shipped from bonded warehouse in Germany. From our Swiss headquarters we can ship any quantity, per cut meter, full spool or shipping unit!


Full Pricelists (download) in Euro/US$ and CHF to be found here: Link


Please inquire via Contact and avoid entering all datas, you can simply send us an email to info@gotham.ch



Gotham Cables are available from our Swiss service lab soldered as per your desires.
Each cable is being made in our own service lab by our own staff at highest standards and to your specification.
Visit our soldering department here:  LINK
