GAC-xx Paar foil AES Foliengeschirmtes Multipaarkabel 4-12 Paar

Foil-shielded digital cables for transmission of AES/EBU data with stabilized impedance of 110 ohm. The aluminium-foil is melt with jacket for easy removal of the shield with one handling and it provides excellent specifications, even for analog signals. The single element is similar to GAC-2/foil AES/EBU (10652), but the conductor is made of bare copper wires.

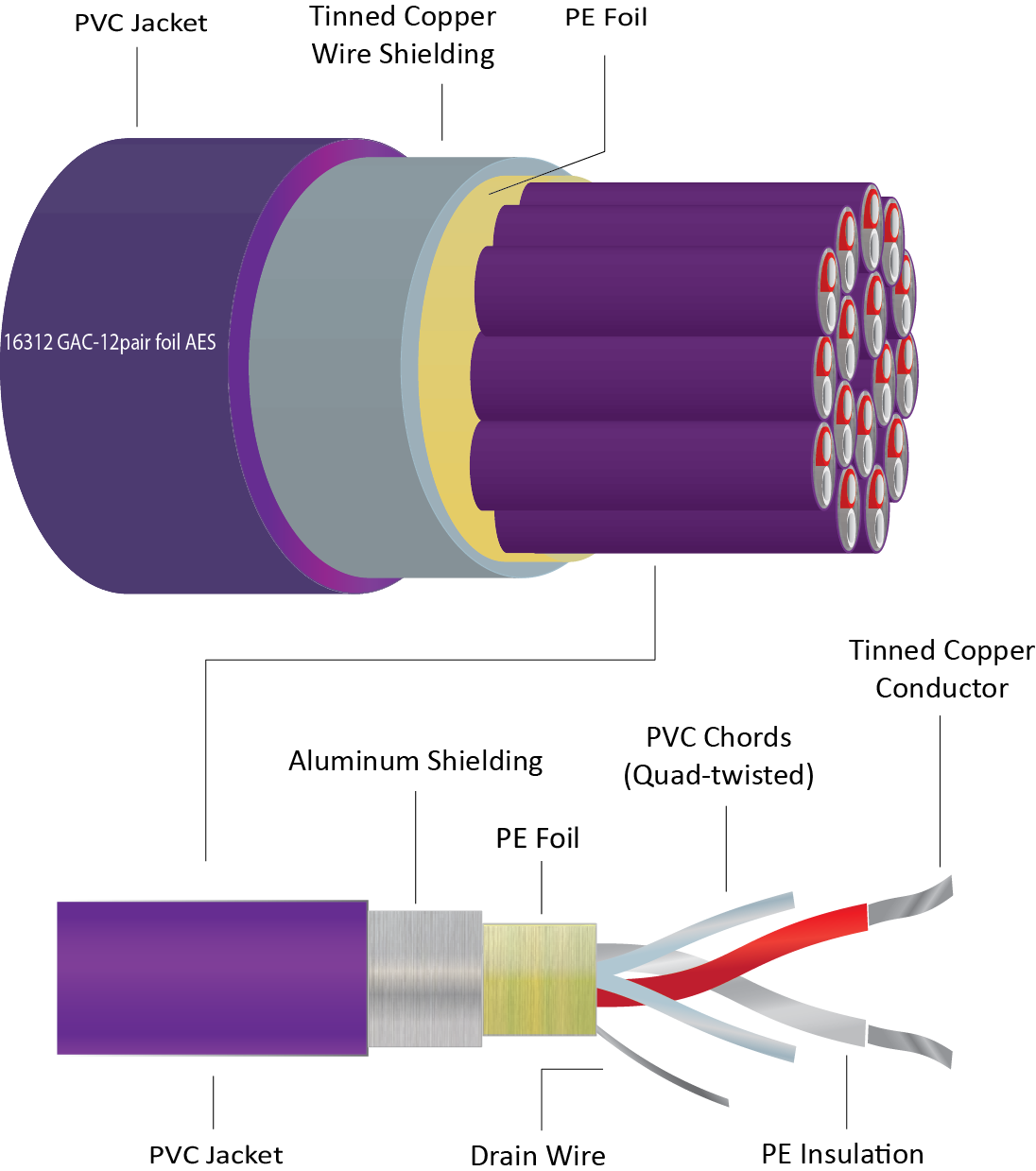

Construction of one pair: (similar to  10652 GAC-2/foil AES/EBU)

1 = Jacket: PVC, purple
2 = Shield: Braiding with tinned copper wires (0.10mm)
3 = Separation: PE foil
4 = Jacket: PVC, Ø 4.5 mm, purple
5 = Shield: Aluminium-foil
6 = Drain wire: Solid tinned copper wire, Ø 0.4mm
7 = Stabilisation: PE foil
8 = Cord (2): PVC-strand, 1.3 mm, quad twisted with 2 conductors (9/10)
9 = Insulation: Foam-skin 'PE', Ø 1.3 mm, red and white
10 = Conductor: Solid tinned copper wire, Ø 0.5 mm (0.19 mm²)

Technical Datas:

Conductor resistance:    < 90 ohm/km
Attenuation: at 1 MHz  < 2.5 dB/100m
  at 6 MHz < 6.5 dB/100m
Insulation resistance:   > 10 GOhm/km
Capacitance: at 1-6MHz : < 40 nF/km
Characteristic impedance:    110 Ohm +/- 2%
Temperature range: flexi-installed: -5° to +50° C
  fix-installed: -30° to +70° C


GAC-4pair foil AES/EBU (16304)

Jacket: PVC, max Ø 13.0 mm Purple
Standard spool size: 250m
Weight/m: 0.20 kg
Weight/spool: 50.00 kg


GAC-8pair foil AES/EBU (16308)

Jacket: PVC, max Ø 17.0 mm Purple
Standard spool size: 150m
Weight/m: 0.32 kg
Weight/spool: 48.00 kg



GAC-12pair foil AES/EBU (16312)

Jacket: PVC, max Ø 19.50 mm Purple
Standard spool size: 150m
Weight/m: 0.50 kg
Weight/spool: 75.00 kg


Ordering Information:

Order No. Type Type Colour Spool Size Weight/
Spool
 Shipping Unit
16304 GAC-4paar foil AES 13.0 mm Purple 250m 40.00 kg 1x250m HS400
16308 GAC-8paar foil AES 17.0 mm Purple 150m 48.00kg 1x150m HS400
16312 GAC-12paar foil AES 19.5 mm Purple 150m 75.00kg 1x150m HS400


Retail Prices:


Order No. Foil Shielded Digital Multipair Cables Length/
Spool
Color **Export shipping unit CHF (Swiss Francs) € (Euro)
per spool * per meter per spool * per meter
16302 GAC 2pair foil AES 200 m Rolle purple 1x200m  222.85  1.45 196.50   1.30
16304 GAC-4pair foil AES max. 250 m purple 1x250m  1'377.00  5.50 1'212.50   4.85
16308 GAC-8pair foil AES max. 150 m purple 1x150m  1'458.00 9.70 1'282.50  8.55
16312 GAC-12pair foil AES max. 150 m purple 1x150m 1'944.00 12.95 1'717.50 11.45


Please see ordering Information link:
Terms: CHF (Swiss Francs) Price is including Swiss Domestic 7.70%  VAT.
Ex works Dietikon Switzerland. Packing and crate included. You can collect your order in Dietikon w/o any shipping fees.

Sold per meter as per your order. We cut every cable to your order. Maximum continus lenght is a standard spool.

*Price per meter charged per actual measurement. We can only sell / invoice full meters.

Shipment from stock in Switzerland:  we can ship from Swiss sales office in Dietikon Switzerland. No minimum Order
Orders from Swiss warehouse can consolidate other products from our domestic range (such as connectors) and cables could be cut to order and/or even terminated with connectors.
Example of a cable spool as stored in Germany and Switzerland
Check possible remant spools/leftover pieces at special prices from Swiss warehouse!  Link to Sale items
shipment from warehouse in Germany:  c/o bonded warehouse c/o Streck Transport GmbH in Freiburg (Germany) for shipments.
Multipair can not be cut in Germany warehouse. You need to order/take spools actually available.
Check with us individual spool sizes possibly available. Standard spool are available.
Attention: German clients and EC clients w/o UID (Vat identification) number will be charged with 19% German VAT in addition!
Minimum order for shipments from Germany warehouse is for each line item 1pc standard shipping unit or multibles thereof.

**Export shipping unit:
The shipping units rules do only apply for orders being shipped from bonded warehouse in Germany. From our Swiss headquarters we can ship any quantify, per cut meter, full spool or shipping unit!


Full Pricelists download to be found here:  Link



please ask for a quotation here: (link)

Please indicate your address and details, indicate product and quantity and requested delivery date.
