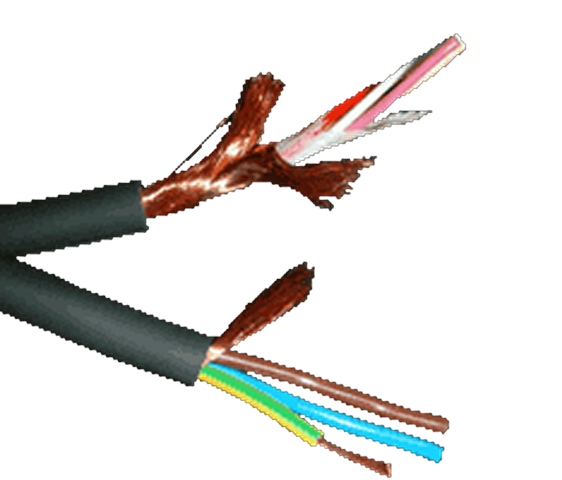

Hybrid Starquad GAC 4/1 Double Shielded & 3 x 0.75mm² (11510) Single Shielded Power 230V


Hybrid Audio/Power cable perfect to make interconnect leads for active loudspeaker systems/studio monitors.
We combine a double shielded starquad cableb similar to our 10921 with a shielded  power cable for 230VAC.
Our starquad construction will protect your genuine audio signal from possible RF-interferences transmitted from your mains power line.



Signal A: GAC 4/1mini  Signal side Staequad  10921 in PVC/PE


Construction: Star quad Audio Cable

1 = Jacket: PVC, Ø 6.5 mm, grey (dark)
2 = Shield No. 1: Bare copper wires (0.10mm) 100% coverage
3 = Shield No. 2: Bare copper wires (0.10mm) 100% coverage
4 = Viscose fiber coat: Counter wrapped to the quad conductors
5 = Insulation: PE, Ø 1.2 mm, white, red, pink and ivory quad twisted
6 = Conductor: Stranded bare copper wires 7 x 0.20mm (0.22mm²)


Technical Datas:

Conductor resistance:   < 85 ohm/km
Shielding resistance:   < 20 Ohm/km
Capacitance: cond/cond: < 55 nF/km
  cond/shield: <105 nF/km
Characteristic impedance: at 20 kHz: 80 ohm
Prüfspannung: cond/cond: 500 veff
  cond/shield: 2000 veff


Side B: 3 x 0.75mm² Single Shielded (11510) Power Cable

Application: Tree conductor signal line for high power.

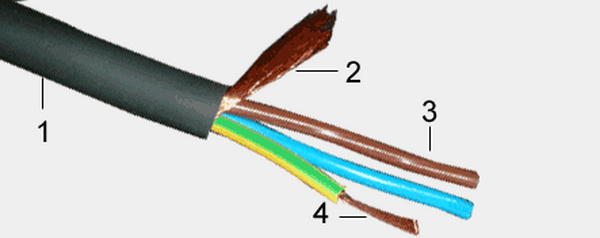

Construction:

1 = Jacket: PVC, Ø 6.5 mm, grey (dark)
2 = Shield: Bare copper wires (0.10mm), 100% coverage
3 = Insulation: PVC, Ø 3.00mm high voltage tested
4 = Conductor: Stranded bare copper wires 24 x 0.20mm (0.75mm²)

Technical Datas:

Conductor resistance:   < 30 ohm/km
Shielding resistance:   < 30 ohm/km
Test voltage: cond/cond: 500 veff
  cond/shield: 2000 veff
Maximum Watts load: @ current 4.00 Ampere/Line < 500 Watt

Ordering Information:

Order No.
Type
Diameter
Colour
Spool Size
Weight/
Spool
Shipping
Unit
11510 Hybrid Cable 6.5 x 13.4 mm gray 100m 13.30 kg 2x100m


Retail Prices:

Order Nr. Hybrid-Speaker Cables Length/
Spool
Color **Export shipping unit CHF (Swiss Francs) ExportEUR
per spool * per meter per spool * per meter
11510 Hybrid 4/1 & 3x0.75mm² 100 m dark gray  2x100m 435.85 5.45 384.35  4.80
11615 Hybrid 4/1 & 3x1.50mm²
New October 2017
100m black 2x100m 907.20 11.35 799.00 10.00
.


please ask for a quotation here: (link)

Please indicate your address and details, indicate product and quantity and requested delivery date.


Please see ordering Information link:
Terms: Prices are in CHF (Swiss Francs), this price is including Swiss Domestic 7.70%  VAT. Ex works Dietikon Switzerland. Packing and crate included. You can collect your order in Dietikon w/o any shipping fees.

Sold per meter and standard spools from Swiss warehouse.  *Price per meter only charged if not a full spool was ordered.

- Shipment from stock in Switzerland:  we can ship from Swiss sales office in Dietikon Switzerland. No minimum Order
Orders from Swiss warehouse can consolidate other products from our domestic range (such as connectors) and cables could be cut to order and/or even terminated with connectors.

Check possible remant spools/leftover pieces at special prices from Swiss warehouse!
Link to Sale items


- shipment from warehouse in Germany:  stored in bonded warehouse c/o Streck Transport GmbH in Freiburg (Germany). Attention: German clients and EC clients w/o UID (Vat identification) number will be charged with 19% German VAT in addition! Minimum order for shipments from Germany warehouse is for each line item 1pc standard shipping unit or multibles thereof. Collections at warehouse possible by appintment only and with some restrictions.

**Export shipping unit:
The shipping units rules do only apply for orders being shipped from bonded warehouse in Germany. From our Swiss headquarters we can ship any quantify, per cut meter, full spool or shipping unit!


Full Pricelists (download) in Euro/US$ and CHF  to be found here:Link


Gotham Cables are available from our Swiss servicelab soldered as per your desires. Each cable is being made in our own servicelab by our own staff at higest standards and to your specification.
Visit our soldering department here:  LINK

Starquad wiring instruction:
In order to benefit from the Starquad concept you need to wire the 4 conductors for you balanced audio cable as follows: (See wiring diagram below)
Bundle each opposite (Star) conductor together, we made colour code easy to identify the opposite conductor. (red/pink and white/ivory each belong together.)
Pin2= red&pink (Signal+),  Pin3= white&ivory (Signal -). Pin1= shield 1&2 =Ground
Put each a few strands of each layer of the shields together to ground Pin 1 should you not have space for all shielding strands.
Cut away any spare strands from the shields and secure that no loose strands are hanging around. Use a shrinking tube to avoid short circuits.
We do not recommend putting any ground to the body shell on either side of your XLR line. The connector shell will get to ground once plugged into a receptacle.
RCA/Phono/Jack unbalanced wiring:
Many clients use our 4 conductor cable also for unbalanced interconnects. In this case we recommend to only use 1 conductor (red) for your signal and put all other wires or parts thereof to ground with the shields. This will increase your noise protection! However for unbalanced application we do have our perfect unbalanced wires 1001x, and 1000x.
Stereo & 2 Channels application:
We actually do not support the idea to use a Starquad cable for stereo wiring, however it will be done and can be made with acceptable compromise regarding crosstalk and similar. If you use the cable as stereo line, use red/white for channel 1 and pink/ivory for channel 2. And again, all the shields to ground but not to the body shell of your connector.
Check our perfect stereo cables 12001/13001 or our conductor shielded Starquad 11301 for real quality stereo wiring!



Video "do it yourself" Konfektion Starquad auf XLR Stecker

-XLR Starquad mit 11001 auf QGP Stecker

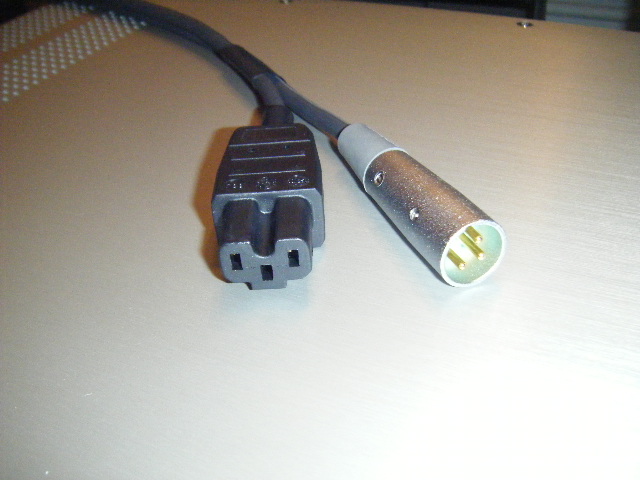

made-up leads (Swiss Made)    Link:      mains power cable assemblies
