High Power double Reussen shielded 3x5.50mm² (85055) Mains power Cables

Double Reussen shieded power cable  for mains power to your Hi-End Audio Gear. This cable ensures best transport of needed energy (up to 4000 Watt and 33 Ampere current) to our device but due to our exklusive Double Reussen shielding and conductive copper layer (K6160), this is protecting your signal cables nearby even better from humm and RF noise generated by the 50/60Hz signal going tru the power supply cable.
Harmonisierter Produktecode:  2YSL(ST)DY3G5.5



Construction:

1 = Jacket: PVC (YM2) 1.30mm. 13.50mm Ø dark blue RAL5013
2 = Shield 1: Bare copper wires (0.20 mm) 100% coverage S
3 = Shield 2 Bare copper wires (0.20 mm) 100% coverage Z
4 = Shield # 3 K6160 Polyester nonwoven thermally bonded, both sides copper coated, counter wrapped to the twisted conductors.
5 = Insulation 3x: PE-2YI 1 0.80mm thickness. Nominal Diameter 4.60 mm,
Color code: Blue-Brown-Yellow/Green
6 = Conductor 3x: 105x0,25mm Ø bare OFC copper wires 2,97mm Ø
= 5,50mm²

Technical datas:

Conductor resistance:   < 3.50 Ohm/km
Rating Voltage:

300/500V

Test Voltage:   2000 Veff
 Temperature range:   -30° to +70° C
Maximum Watts load: @ current 33 Ampere/Line < 4000 Watt

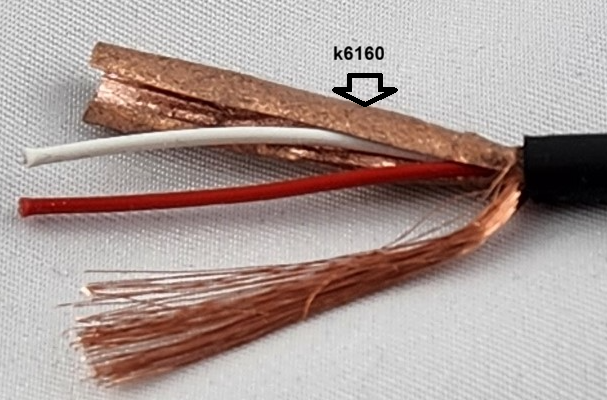

New additional shield with K6160 Polyester nonwoven thermally bonded, both sides copper coated

K6160 Polyester nonwoven thermally bonded, both sides copper coated

Ordering Information:

Order No.
Type
Diameter
Colour
Spool Size
Weight/
Spool
Shipping
Unit
85015 GPC-3x1.5mm² PVC 7.6 mm Marineblue 100m 11.00 kg 2x100m
85025 GPC-3x2.5mm² PVC 9.5 mm Marineblue 100m 16.50 kg 2x100m
85215 GPC-3x1.5mm² FRNC 8.2 mm Marineblue 100m 10.90 kg 2x100m

85055 GPC-3x5.5mm²  PVC 13.0 mm Marineblue 100m 38.00 kg 1x100m


made-up leads (Swiss Made)    Link:      mains power cable assemblies






Please inquire via contact and avoid entering all datas. You can also simply send us an email to info@gotham.ch
No minimum order!


Please see ordering Information link:
Terms: Prices are in CHF (Swiss Francs), this price is including Swiss Domestic 7.70%  VAT. Ex works Dietikon Switzerland. Packing and crate included. You can collect your order in Dietikon w/o any shipping fees.

Sold per meter and standard spools from Swiss warehouse.  *Price per meter only charged if not a full spool was ordered.

- Shipment from stock in Switzerland:  we can ship from Swiss sales office in Dietikon Switzerland. No minimum Order
Orders from Swiss warehouse can consolidate other products from our domestic range (such as connectors) and cables could be cut to order and/or even terminated with connectors.

Check possible remnant spools/leftover pieces at special prices from Swiss warehouse!
Link to Sale items


- shipment from warehouse in Germany:  stored in bonded warehouse c/o Streck Transport GmbH in Freiburg (Germany). Attention: German clients and EC clients w/o UID (Vat identification) number will be charged with 19% German VAT in addition! Minimum order for shipments from Germany warehouse is for each line item 1pc standard shipping unit or multibles thereof. Collections at warehouse possible by appintment only and with some restrictions.

**shipping unit/standard spool: The shipping units rules do only apply for orders being shipped from bonded warehouse in Germany. From our Swiss headquarters we can ship any quantity, per cut meter, full spool or shipping unit!
