10682 2x DMX & 2x1.0mm² 230v AC, FRNC

2x DMX signal  110 Ohm, digital, stabilized Impedance for save datatransfer with a 2x1,0mm 230VAC Class  II Power line combined Hybrid cable combined in a 9,20mmØ.2mm FRNC jacket. Hybrid LED control Cable !
LFOC higher grade copper at best standards for best performance. This cable is also capable to be used for DMX or analog audio signals.
 FRNC = Flame Retardant Non Corrosive and halogen free

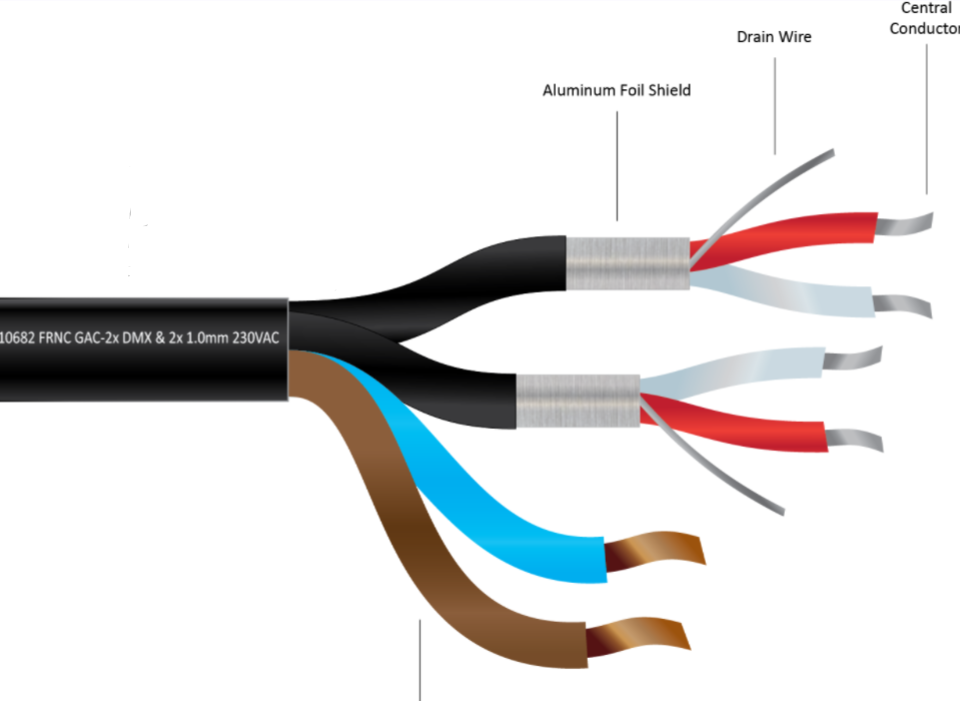

Construction

 (110Ohm DMX Line)  AC-Power Line
  2 x 0,15mm² plus ground 2 x 1,00mm²
Conductor: 19x0,10mmØ SnCu 19x38AWG = 32x0,20mmØ SnCu 32x32AWG =
Nominal Diameter 0,50mmØ 1,25mØ
INSULATION : PEE - 02YI 1 LSOH-HI2
Nominal Insulation Thickness 0,60mm 0,60mm
Nominal Insulation Dia.(mm.Ø) 1,15mmØ 2,45mmØ
COLOR CODE : White – Red. Blue - Brown
DRAIN WIRE : 7x0,20mmØ SnCu (Ground) ----
SHIELD ALPET foil numbered ----
TWISTING : 2x DMX plus 2 power core twisted together. Lay length: ~ 70mm
JACKET : FRNC/LSOH  Halogenfree compound (HM 2 - DIN VDE 0207 part 24)
Nominal Jacket Thickness 0,80mm.
Max. Diameter 9,20mmØ
Color Light Grey

Technical Datas:
CHARACTERISTIC IMPEDANCE: 110 Ohm ----
NOMINAL CAPACITANCE : 50 pF/mt. ----
CONDUCTOR RESISTANCE : < 116 Ohm/km. < 19,5 Ohm/km.
RATING VOLTAGE : 100 V. max. 300 VAC
TEST VOLTAGE : 800 V. 2000 V.
Maximum Watts load (LED-DC Line): @ current 6.0 Ampere/Line < 700 Watt

Ordering Information:

Order No. Type Diameter Colour Spool Size Weight/
Spool		  Shipping Unit
10682 FRNC 2xDMX &2x1,0 230vAC 9.20mm lightgray 200m 20.7 kg H333 1x200m

Please inquire via contact and avoid entering all datas. You can also simply send us an email to info@gotham.ch
No minimum order!
Please see ordering Information link:
Terms: Prices are in CHF (Swiss Francs), this price is including Swiss Domestic 7.70%  VAT. Ex works Dietikon Switzerland. Packing and crate included. You can collect your order in Dietikon w/o any shipping fees.
Sold per meter and standard spools from Swiss warehouse.  *Price per meter only charged if not a full spool was ordered.

- Shipment from stock in Switzerland:  we can ship from Swiss sales office in Dietikon Switzerland. No minimum Order
Orders from Swiss warehouse can consolidate other products from our domestic range (such as connectors) and cables could be cut to order and/or even terminated with connectors.

Check possible remnant spools/leftover pieces at special prices from Swiss warehouse!
Link to Sale items

- shipment from warehouse in Germany:  stored in bonded warehouse c/o Streck Transport GmbH in Freiburg (Germany). Attention: German clients and EC clients w/o UID (Vat identification) number will be charged with 19% German VAT in addition! Minimum order for shipments from Germany warehouse is for each line item 1pc standard shipping unit or multibles thereof. Collections at warehouse possible by appintment only and with some restrictions.

**shipping unit/standard spool: The shipping units rules do only apply for orders being shipped from bonded warehouse in Germany. From our Swiss headquarters we can ship any quantity, per cut meter, full spool or shipping unit!

Full Pricelists (download) in Euro/US$ and CHF to be found here: Link

Please inquire via Contact and avoid entering all datas, you can simply send us an email to info@gotham.ch


Gotham Cables are available from our Swiss service lab soldered as per your desires.
Each cable is being made in our own service lab by our own staff at highest standards and to your specification.
Visit our soldering department here:  LINK
