Swiss made cable assemblies

Made-up Leads (Swiss Made) assembeled and soldered in house @ Gotham Audio Dietikon Headquarters Switzerland
hi-end unbalanced
cinch/phono/RCA		 unbalanced
75 ohm
digital S/PDIF coax		 hi-end balanced
starquad 4-conductor

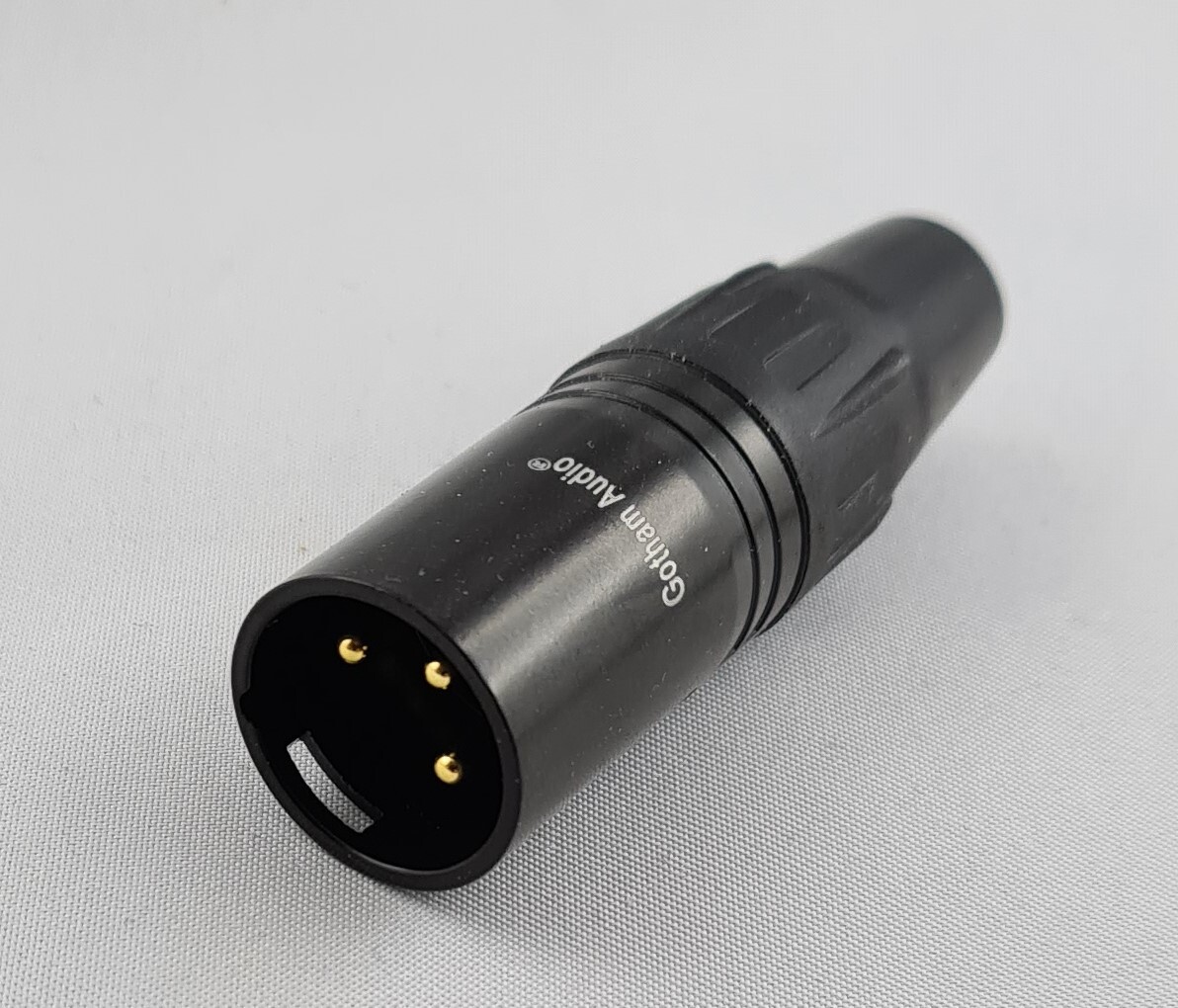

XLR microphone leads		 balanced 3 conductor
XLR lead
(Neumann Style)
balanced 2 conductor XLR analog leads
 		 stereo wire
XLR analog		 balanced AES-EBU
110 ohm XLR digital
speaker cables
banana plugs / spades
guitar cables 1/4" jack Hi-End power cords  230V
06-15 Amp for CH/DE/USA		 Power cords  230V
06-15 Amp for DE/CH/UK/USA		 XLR-Y-cable
Adaptor


D-Sub25 to D-Sub25 D-Sub25 to XLR Tube Cablers 7 pin XLR


Velcro Tapes with Gotham Logo for cable assemblies

Only available from Swiss Sales office.
All Swiss made cable assemblies will be equipped with this feature at no additional costs


please ask for a quotation here: (link)

Please indicate your address and details, indicate product and quantity and requested delivery date.


Our onlineshop is offline right now. Please inquire via Contact and avoid entering all datas, you can simply send us an email to info@gotham.ch and we will  quote with our ERP system. Link Contact

Balanced XLR wiring instruction:
Pin1= shields, Pin2= brown (Signal+),  Pin3= white (Signal -).
Should space not allow to solder all strands of the many shields, you can put only each a few strands of each layer of the shields to ground Pin 1. Cut away any spare strands from the shields and secure that no loose strands are hanging around. Use a shrinking tube to avoid short ciricuits. We do not recommend to put any ground to the body shell on either side of your XLR line. The connector shell will get to ground once pluged into a recepacle.

Having your shields put on the connectors shell is dangerous! Imaginge, a loose cable can make contact with another loose cable connector having a diffrent ground potential. So the metal connector is conductive and shall not carry your audio ground used on the shieldings of your audio signal. It can interfere with other "grounds" such as video, data of power grounds, which are potentially different! So keep "grounds" seperate!

RCA/Phono/Jack unbalanced wiring:
Many clients use our 2 conductor cable also for unbalanced interconnects. In this case we recommend to only use 1 conductor (brown) for your signal and put all other wires or parts thereof to ground with the shields. This will increase your noise protection! However for unbalanced application we do have our perfect unbalanced wires 1001x, and 1000x.
Unbalanced Stereo & 2 Channels (loop) application:
We actually do not support the idea to use a a 2 conductor cable for stereo unbalanced wiring, however it will be done and can be made with accepable compromise regarding crosstalk and similar. Again all the shields to ground but not to the body shell of your connector. Check our perfect stereo cables 12001/13001 or our conductor shielded Starquad 11301 for real quality stereo wiring!



made-up leads (Swiss Made)    Link:      mains power cable assemblies
