GPC 3x2.5mm² Power Cable (85025) Shielded, high flex PVC up to 240Vac
Reussen shielded power cable for mains power to your Hi-End Audio Gear. This cable ensures best transport of needed energy (up to 1650 Watt and 15 Ampere current) to our device but due to our exklusive Reussen shielding and conductive seperation layer, this is protecting your signal cables nearby even better from humm and RF noise generated by the 50Hz signal going tru the power supply cable.
Harmonisierter Produktecode: 2YSL(ST)DY3G2.5

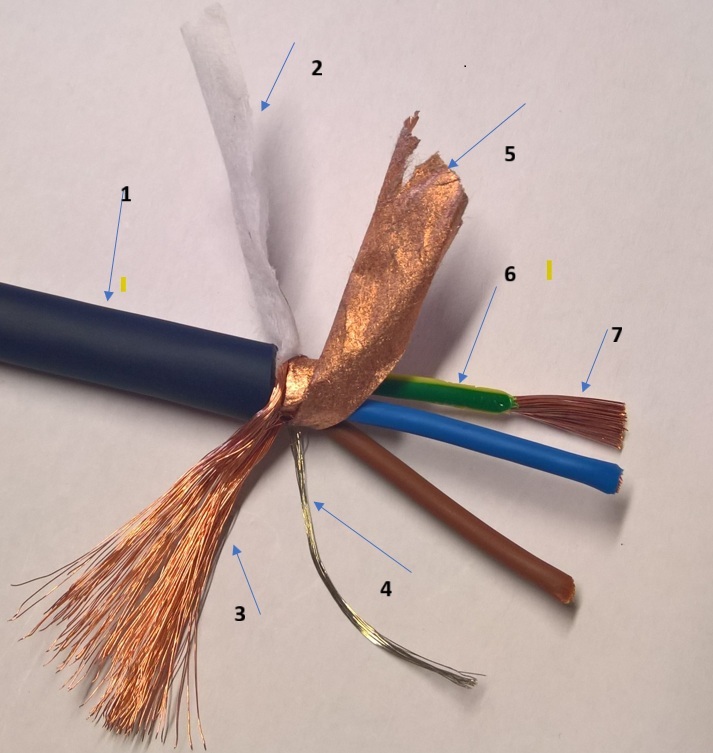

|1 = Jacket:||PVC (YM2) 1.1mm
Ø 9.50 mm max., ultrablue RAL5013
|2 = wrapping||Non woven fabric tape|
|3 = Shield no 2.||Bare copper wires (0.15 mm) 100% coverage S|
|4 = Drain Wire||16x0,19mmØ Cu (Ground) bare copper|
|5 = Shield no 1||K6160 Polyester nonwoven thermally bonded, both sides copper coated (see below)|
|6 = Insulation 3x:||PE – 2YI 1, 0.50mm thickness.
Nominal Diameter 3.05 mm,
Color code: Blue-Brown-Yellow/Green
|7 = Conductor 3x:||45x0,25mmØ Cu 2,50mm² bare copper stranded
IEC 60228 Class 5 flexible copper conductor 2,50mm²
|Conductor resistance:||< 8.20 Ohm/km|
|Test Voltage:||2000 Veff|
|Temperature range:||-30° to +70° C|
|Maximum Watts load:||@ current 15.0 Ampere/Line||< 1650 Watt|
|85015||GPC-3x1.5mm² PVC||7.6 mm||Marineblue||100m||11.00 kg||2x100m|
|85025||GPC-3x2.5mm² PVC||9.5 mm||Marineblue||100m||16.50 kg||2x100m|
|85215||GPC-3x1.5mm² FRNC||8.2 mm||Marineblue||100m||10.90 kg||2x100m|
|85055||GPC-3x5.5mm² PVC||13.0 mm||Marineblue||100m||38.00 kg||1x100m|
New additional shield with K6160 Polyester nonwoven thermally bonded, both sides copper coated
K6160 Polyester nonwoven thermally bonded, both sides copper coated
Retail Prices July 2022:
Gotham Power Cable
Mains Power -240vAV
|Color||**shipping unit||CHF (Swiss Francs)||€ (Euro)|
|per spool||* per meter||per spool||* per meter|
|85015||GPC 3x1.5mm² shielded Power Cable for 110-230v. PVC
50/60 Hz 900 Watt
|100m||marine blue dark||2x100m||606.45||7.65||536.30||6.75|
|85025||GPC 3x2.5mm² shielded Power Cable for 110-230v. PVC
50/60 Hz 1650 Watt
|100m||marine blue dark||2x100m||851.30||10.65||752.80||9.45|
|85055||GPC 3x5.5mm² shielded Power Cable for 110-230v. PVC
50/60 Hz 4000Watt
|100m||marine blue dark||100m||1'819.45||22.80||1'608.90||20.15|
|85215||GPC 3x1.5mm² shielded Power Cable for 110-230v. FRNC
50/60 Hz 900 Watt
|100m||marine blue dark||2x100m||468.55||5.85||414.35||5.20|
Please inquire via contact and avoid entering all datas. You can also simply send us an email to firstname.lastname@example.org
Please see ordering Information link:
Terms: Prices are in CHF (Swiss Francs), this price is including Swiss Domestic 7.70% VAT. Ex works Dietikon Switzerland. Packing and crate included. You can collect your order in Dietikon w/o any shipping fees.
Sold per meter and standard spools from Swiss warehouse. *Price per meter only charged if not a full spool was ordered.
- Shipment from stock in Switzerland: we can ship from Swiss sales office in Dietikon Switzerland. No minimum Order
Orders from Swiss warehouse can consolidate other products from our domestic range (such as connectors) and cables could be cut to order and/or even terminated with connectors.
Check possible remnant spools/leftover pieces at special prices from Swiss warehouse!
Link to Sale items
- shipment from warehouse in Germany: stored in bonded warehouse c/o Streck Transport GmbH in Freiburg (Germany). Attention: German clients and EC clients w/o UID (Vat identification) number will be charged with 19% German VAT in addition! Minimum order for shipments from Germany warehouse is for each line item 1pc standard shipping unit or multibles thereof. Collections at warehouse possible by appintment only and with some restrictions.
**shipping unit/standard spool: The shipping units rules do only apply for orders being shipped from bonded warehouse in Germany. From our Swiss headquarters we can ship any quantity, per cut meter, full spool or shipping unit!
Full Pricelists (download) in Euro/US$ and CHF to be found here: Link
Please inquire via Contact and avoid entering all datas, you can simply send us an email to email@example.com
Gotham Cables are available from our Swiss service lab soldered as per your desires.
Each cable is being made in our own service lab by our own staff at highest standards and to your specification.
Visit our soldering department here: LINK
Pricelist made up leads/Cable assemblies from Swiss servicelab
|CHF||CHF Made up Leads Retail price list||updated||Link|
