10562 GAC-2 Ultra Pro Magnetic shielded
New product available in November 2026
Top professional audio cable for balanced audio signal transports at uncompromised quality. Magnetic shield, each conductor double shielded and over all 'Double Reussen copper shield', velvet matte non-light reflecting PVC-jacket material.
A unique construction invented by Gotham Audio design.
Each conductor is shielded with a lap shield 100% covering copper wires (7) (Reussen shield) plus a conductive separation layer (5-7) (copper coated viscose tape). This conductor is twisted around conductor no 2 and turn is hold it in place with another copper coated layer, followed by Gotham's unique Double Reussen shield. This cable is absolutely uncompromised to achieve maximum shielding possible while the flexibility and durability is still good.
The cable is built with a stabile 110 ohm impedance and can be used for analog balanced audio signals as well as digital audio signals in the AES-EBU format. Ideal cable for accomodation of XLR-connectors with corresponding 8.8 mm diameter cable claps.

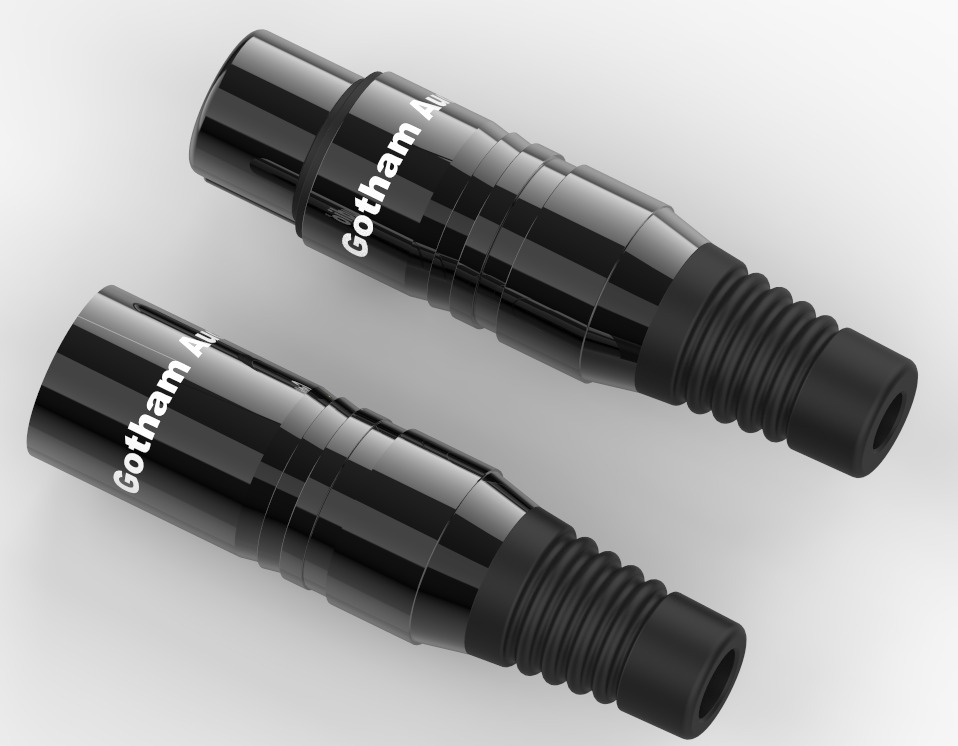

We have designed a specific new Hi-End XLR connector to accommodate this cable. Please see link
Oxygen free (LCOF) higher grade 100% pure copper at best standards for best performance.
Construction: |
||
| 1 = Jacket: | PVC, max. Ø 8,80 mm in dark blue RAL5013 | |
| 2 = Over all Mu-Metal Shield | Mu-metal tape(0.025 mm) %100 coverage | |
| 3 = Over all Copper Shield # 1 | Bare copper wires (0.10 mm) 100% coverage Reussen Shield Z | |
| 4 = Over all Copper Shield # 2 | Bare copper wires (0.10 mm) 100% coverage Reussen Shield S | |

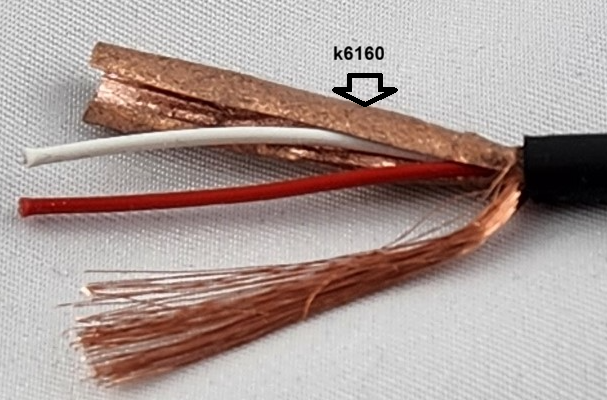

| 5 = Over all Copper Tape shield | K6160 Polyester nonwoven thermally bonded copper coated tape | |
| 6 = Twisting / filler | Two shielded cores and fillers twisted together to from a pair | |
| 7 = Conductor Copper shield layer | K6160 Polyester nonwoven thermally bonded copper coated tape | |
| 8 = Conductor Copper shield | Bare copper wires (0.10 mm) 100% coverage | |
| 9 = Insulation | Cellular PP 09YI 1, Ø 2.00mm, white/red | |
| 10 = Conductor | Stranded bare LCOF copper wires 64 x 0.10mm (0.50mm²) 64x38AWG = 20AWG | |
Technical Datas: |
||
| Conductor resistance: | max 39 ohm/km | |
| Shielding resistance: | < 28 Ohm/km | |
| Capacitance: | Conductor/ Cond: | max. 50 nF/km |
| Conductor/Shield: | 135 nF /km | |
| Impedance: | 110 Ohm | |
| Test voltage: | 2000 veff | |
| Temperature range: | flexi-installed: | -5° to +50° C |
| fix-installed: | -30° to +70° C | |
Ordering Information:
| Order No. | Type | Diameter | Colour | Spool Size | Weight/ Spool |
Shipping Unit |
|---|---|---|---|---|---|---|
| 10562 | GAC-2 Ultra Pro Magnetic shielded | 8.8 mm | dark blue | 100m | 12.00 kg | 1x100m in Box |
Please inquire via contact and avoid entering all datas. You can also simply send us an email to info@gotham.chNo minimum order! No timeconsuming online shop routine!
