SPK 2 x 4.0mm² magnetic shielded (50045) PVC Speaker cable
New Product ! available now
Magnetic and 2-times copper shielded Speaker cable for power amplifiers up to 2750 watts. 224 strands of 0.15 mm bare copper wires. Fine stranding for best flexibility but still affordable price. Double shielded yet still flexible construction. Easy application to most connectors. PVC strands do keep the cable construction round and stable. Drain wire for ground contact.
LFOC higher grade copper at best standards for best performance. Flameretarded PVC Jacket (IEC 60332-3)
PDF Datasheet

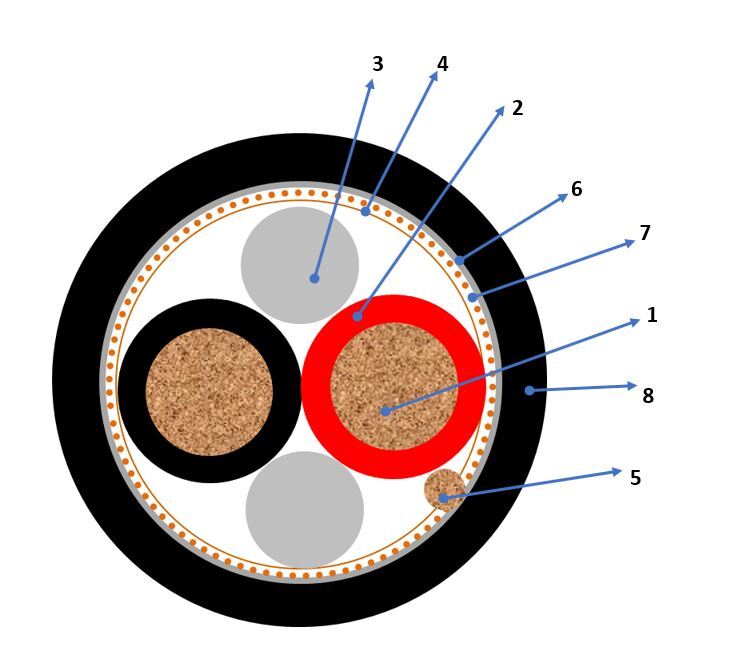

Construction: |
||
| 8 = Jacket: | Flameretarded PVC YM2, Ø 11.60 mm, black | |
| 7= Mu metal | Mu-metal tape (0.025 mm) %100 | |
| 6 = Copper Shield #2 | Bare copper wires 0.15mm, 100% coverage | |
| 5 = Drain wire | 16x0,19mmØ Cu (Ground) bare copper | |
| 4 = Copper Shield #1 | K6160 Polyester nonwoven thermally bonded, both sides copper coated | |
| 3 = Twisting | Two conductors (red/black) and two PVC filler twisted together. Lay Lenght ̴ 120mm | |
| 2 = Insulation: | PVC YI 1, Ø 3.9 mm, Color code black and red | |
| 1 = Conductor: | (OFC) Stranded bare copper wires 224 x0.15mm) (3.91 mm²) 224x34 AWG (11 AWG) | |
Technical Datas: |
||
| Conductor resistance: | < 4.95 ohm/km | |
| Test voltage: | cond/cond: | 2000 veff |
| Temperature range: | flexi-installed: | -5° to +50° C |
| fix-installed: | -30° to +70° C | |
| Maximum Watts load: | @ current 24.0 Ampere/Line | < 2750 Watt |
| Twist 360° rotation of conductors: 120mm (pitch per meter 7.14) |
Ordering Information:
|
Order No.
|
Type
|
Diameter
|
Colour
|
Spool Size
|
Weight/
Spool |
Shipping
Unit |
| 50045-50 | SPK 2x4.0mm² magnetic shielded |
11.60 mm | black | 50m | 11.00kg | 1 x 50m Box |
Oxygen free (LCOF) higher grade 100% pure copper at best standards for best performance.
Please inquire via contact and avoid entering all datas. You can also simply send us an email to info@gotham.chNo minimum order! No timeconsuming online shop routine!
Please see ordering information link:
-
Shipment from stock in Switzerland: we can ship from Swiss sales office in Dietikon Switzerland. No minimum OrderOrders from Swiss warehouse can consolidate other products from our domestic range (such as connectors) and cables could be cut to order and/or even terminated with connectors.
Check possible remnant spools/leftover pieces at special prices from Swiss warehouse!
Link to Sale items
-
shipment from warehouse in Germany: stored in bonded warehouse c/o Bracchi Transport 77955 Ettenheim, (Germany).Attention: German clients and EC clients w/o UID (Vat identification) number will be charged with 19% German VAT in addition!
Minimum order for shipments from Germany warehouse is for each line item 1pc standard shipping unit or multiples thereof.
Collections at warehouse possible by appointment only and with some restrictions.
Full Price lists (download) in Euro and CHF to be found here: Link
Swiss Made Madeup cable assemblies using our genuine
and
made à la carte in house even in small quantities. No Minimum orders and available in relative
short notice. See below contacts and how to order from us or our Sales Partners
Visit our soldering department here: LINK
