20202 GAC-9 Tube
Specially designed microphone cable for Tube and Stereo microphones (9 conductors!). Ultra-flexible design and best possible electrical values for an affordable price. Vintage construction. 2 conductors each 0.50mm² for power supply and 7 compact conductors 0.14mm² for balanced audiolines or control signals. Hair-thin stranding! 0.05mm copper strands! This stranding is used also in our 10701 the 3 conductor Neumann cable and 11001 Starquad. Perfect and unique Double Reussen Shield for perfect RF protection!The 20202 is a standard universal cable designed for tube microphones of many kind. Out of the 9 conductors, 2 are made with larger diameter (copper) meant to serve the tube with power, and the other 7 smaller conductors are meant to work as signal and/or control lines. Possibly not all conductors are needed. Any unneeded conductor should go to ground together with our Double Reussen Shield.
LFOC higher grade copper at best standards for best performance.

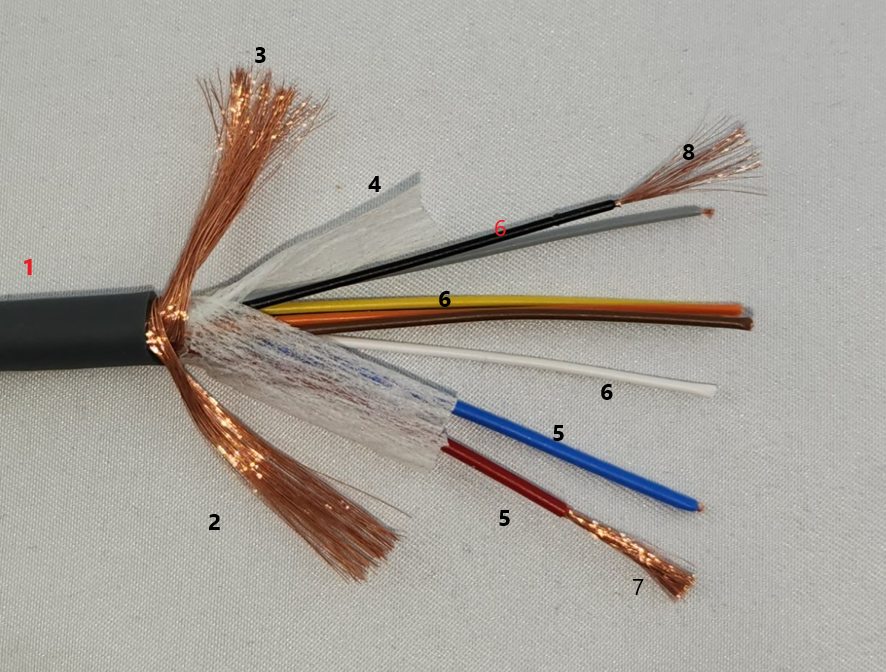

Construction: |
||
| 1 = Jacket: | PVC, Ø 6.8 mm, grey RAL 7024 | |
| 2 = Viscose fiber coat: | Counter wrapped to the shields | |
| 3 = Shield No. 1: | Bare copper wires (0.10 mm) 100% coverage | |
| 4 = Shield No. 2: | Bare copper wires (0.10 mm) 100% coverage | |
| 5 = Insulation A: | PE, 1.50 mm Red/Blue | |
| 6 = Insulation B: | PE, 1.10 mm, White/Yellow/Black/Gray/Green/Brown/Orange | |
| 7 = Conductor A: | Stranded bare copper wires 252 x 0.05 mm (0.50 mm²) Red/Blue 252x44AWG = 20AWG | |
| 8 = Conductor B: | Stranded bare copper wires 72 x 0.05 mm (0.14 mm²) White/Yellow/Black/Gray/Green/Brown/Orange 26AWG | |
Technical Datas: |
||
| Conductor resistance: | cond. A: | < 30 Ohm/km |
| cond. B: | < 110 ohm/km | |
| Shielding resistance: | > 15 gohm/km | |
| Capacitance: | cond/cond: | < 90 nF/km |
| cond/shield: | < 160 nF/km | |
| Test voltage: | cond/cond: | 500 veff |
| cond/shield: | 2000 veff | |
| Temperature range: | flexi-installed: | -5° to +50° C |
| fix-installed: | -30° to +70° C | |
Ordering Information: (available only from Swiss storage) late October 2023
| Order No. | Type | Diameter | Colour | Spool Size | Weight/ Spool |
Shipping Unit |
|---|---|---|---|---|---|---|
| 20202 | GAC-9 Tube | 6.8 mm | gray | 150m | 11.50 kg | 1x150m |
.
