Balanced starquad 4-conductor microphone cables
Starquad Microphone / Audio cables balanced |
||
|---|---|---|
 simply the Best |
 |
 |

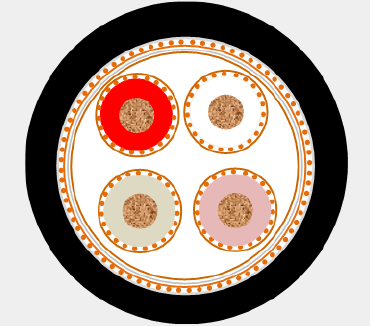

| "ultimative audio cable!" starquad 11301 conductor shielded |
starquad double shielded Hi-End 11001 (11201 FRNC) |
starquad roadcable with PUR Jacket 11051 |
 New in May 2019 |
 |
 |
| starquad double shielded Hi-End installation in white 11288 FRNC) |
starquad installation double shielded 10921 (FRNC) |
"DGS" starquad single shielded eco DGS 41001 |
| Order No. | Analog Cables | Length/ Spool |
Color | **Export shipping unit | CHF (Swiss Francs) | € (Euro) | ||
|---|---|---|---|---|---|---|---|---|
| per spool | * per meter | per spool | * per meter | |||||
| 10921 | GAC-4/1 mini Starquad FRNC | 250 m | black | 4x250m | 385.45 | 1.95 | 339.90 | 1.70 |
| 11001 | GAC-4/1 Starquad PVC | 100 m | black | 4x100m | 268.90 | 3.35 | 237.15 | 2.95 |
| 11051 | GAC-4/1 Road Starquad PUR | 200 m | black | 2x200m | 756.00 | 4.55 | 666.65 | 4.00 |
| 11201 | GAC-4/1 Starquad FRNC | 100 m | black | 4x100m | 268.90 | 3.35 | 237.15 | 2.95 |
| 11301 | GAC-4/1 Ultra Pro Starquad Conductor shielded | 100m | dark blue | 2x100m | 1'387.80 | 17.30 | 1'223.80 | 15.25 |
| 11288 | GAC-4/1 v1 Starquad FRNC | 100m | white | 4x100m | 225.00 | 2.75 | 199.15 | 2.45 |
| Order Nr. | DGS single shielded Cables |
Length/ Spool |
Color | **Export shipping unit | CHF (Swiss Francs) | € (Euro) | ||
| per spool | * per meter | per spool | * per meter | |||||
| 41001 | DGS-4/1 Starquad eco | 100 m | black | 4x100m | 125.80 | 1.55 | 110.95 | 1.40 |
Starquad wiring instruction:
In order to benefit from the Starquad concept you need to wire the 4 conductors for you balanced audio cable as follows: (See wiring diagram below)
Bundle each opposite (Star) conductor together, we made colour code easy to identify the opposite conductor. (red/pink and white/ivory each belong together.)
Pin2= red&pink (Signal+), Pin3= white&ivory (Signal -). Pin1= shield 1&2 =Ground
Put each a few strands of each layer of the shields together to ground Pin 1 should you not have space for all shielding strands.
Cut away any spare strands from the shields and secure that no loose strands are hanging around. Use a shrinking tube to avoid short circuits.
We do not recommend putting any ground to the body shell on either side of your XLR line. The connector shell will get to ground once plugged into a receptacle.
RCA/Phono/Jack unbalanced wiring:
Many clients use our 4 conductor cable also for unbalanced interconnects. In this case we recommend to only use 1 conductor (red) for your signal and put all other wires or parts thereof to ground with the shields. This will increase your noise protection! However for unbalanced application we do have our perfect unbalanced wires 1001x, and 1000x.
Stereo & 2 Channels application:
We actually do not support the idea to use a Starquad cable for stereo wiring, however it will be done and can be made with acceptable compromise regarding crosstalk and similar. If you use the cable as stereo line, use red/white for channel 1 and pink/ivory for channel 2. And again, all the shields to ground but not to the body shell of your connector.
Check our perfect stereo cables 12001/13001 or our conductor shielded Starquad 11301 for real quality stereo wiring!
