10640 GAC-2/mini AES balanced digital installation wire FRNC
Same cable is available as PVC in purple (10620) or with black jacket (10630 PVC) as dedicated DMX cable
Flameretarded FRNC Jacket (IEC 60332-3-24) and EN50266-2-4
Halogen Free IEC 60754-2 and DIN EN 50267-2-21

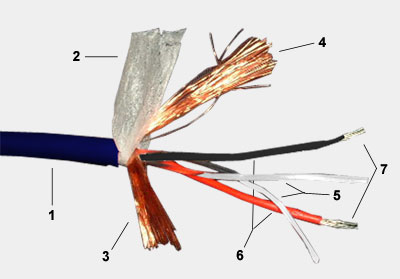

|1 = Jacket:||FRNC Polyolefine, Ø 3.2mm, dark blue|
|2 = Viscose fiber coat:||Counter wrapped to the shields|
|2 = Shield No. 1:||Bare copper wires (0.10mm) 100% coverage|
|3 = Shield No. 2:||Bare copper wires (0.10mm) 100% coverage|
|5 = Cord (2):||'PE', quad twisted with two conductors|
|6 = Insulation:||Scum 'PE' (foam skin), 1.15mm diameter, black and red|
|7 = Conductor:||Stranded tinned copper wires 19 x 0.1mm (0.15mm²)|
|Conductor resistance:||< 115 ohm/km|
|Attenuation:||at 1 MHz||< 3 dB/km|
|Impedance:||< 110 Ohm/km +/- 20%|
|Capacitance:||< 50 nF/km|
|Temperature range:||flexi-installed:||-5° to +50° C|
|fix-installed:||-30° to +70° C|
|Order No.||Type||Type||Colour||Spool Size||Weight/
|4.0 mm||dark blue||200m||6.00 kg||4x200m|
|Order Nr.||Digital Cables
|Color||**Export shipping unit||CHF (Swiss Francs)||Export EUR|
|per spool||* per meter||per spool||* per meter|
|10640||GAC-2/mini AES FRNC||200 m||dark blue||4x200m||251.00||1.55||221.35||1.40|
please ask for a quotation here: (link)
Please indicate your address and details, indicate product and quantity and requested delivery date.
Please see ordering Information link:
Terms: Prices are in CHF (Swiss Francs), this price is including Swiss Domestic 7.70% VAT. Ex works Dietikon Switzerland. Packing and crate included. You can collect your order in Dietikon w/o any shipping fees.
Sold per meter and standard spools from Swiss warehouse. *Price per meter only charged if not a full spool was ordered.
- Shipment from stock in Switzerland: we can ship from Swiss sales office in Dietikon Switzerland. No minimum Order
Orders from Swiss warehouse can consolidate other products from our domestic range (such as connectors) and cables could be cut to order and/or even terminated with connectors.
Check possible remnant spools/leftover pieces at special prices from Swiss warehouse!
Link to Sale items
- shipment from warehouse in Germany: stored in bonded warehouse c/o Streck Transport GmbH in Freiburg (Germany). Attention: German clients and EC clients w/o UID (Vat identification) number will be charged with 19% German VAT in addition! Minimum order for shipments from Germany warehouse is for each line item 1pc standard shipping unit or multibles thereof. Collections at warehouse possible by appintment only and with some restrictions.
**Export shipping unit:
The shipping units rules do only apply for orders being shipped from bonded warehouse in Germany. From our Swiss headquarters we can ship any quantify, per cut meter, full spool or shipping unit!
Full Pricelists (download) in Euro/US$ and CHF to be found here:Link
Gotham Cables are available from our Swiss service lab soldered as per your desires. Each cable is being made in our own service lab by our own staff at highest standards and to your specification.
Visit our soldering department here: LINK
Pricelist made up leads/Cable assemblies
|CHF||CHF Made up Leads Retail price list||updated||Link|
