Foil Shielded Analog Multipair Cable 4-12 pairs PVC PINF

Foil shielded but still quite flexible multipair cable with 4 individual shieleded and isolated balanced audio line for balanced signal transport. Overal aluminimum foil shield and drain wire for overal ground shielding. Tinned OF Copper stranded conductors. Cable sold per meter in cut length or standard spools. All multipair cables outside jacket are numbered each meter for easy length termination.

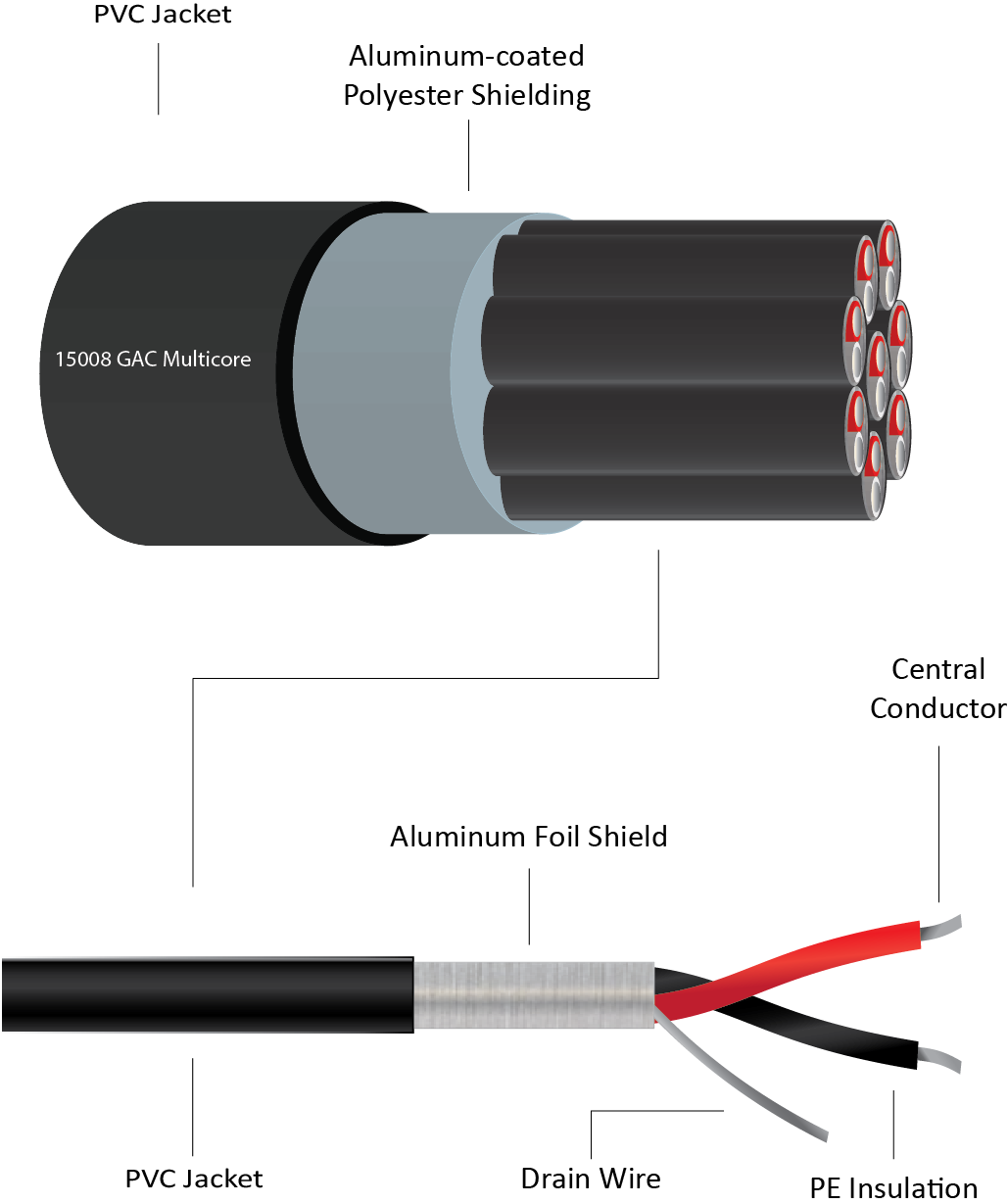

Construction of one pair: (similar to 10202  GAC-2/foil)

1 = Outerr Jacket: PVC, blue (dark)
2 = Overall shield: one side polyester, Aluminium foil (conductor side is inside)
3 = Drain Wire: Stranded tinned OF copper wires, 19x0.25 mm (0.92 mm²)
4 = Jacket numbered 1-8: (Ø 3.4mm) PVC dark blue
5 = Shield: PE, Ø 1.15 mm, rot,weiss, verseilt
6 = Drain Wire: Stranded tinned OF copper wires, 7x0.25 mm (0.34 mm²)
7 = Insulation (cond): PE, Ø 1.30 mm, conductors red and white wrapped
8 = Conductor: Stranded tinned OF copper wires, 7x0.25 mm (0.34 mm²) 7x30AWG = 22 AWG

Technical Datas:

Conductor resistance:    < 60 ohm/km
Shielding resistance:    < 50 Ohm/km
Capacitance at 800Hz: cond/cond:  < 102 nF/km
  cond/shield:  < 184 nF/km
Test voltage: cond/cond:  500 veff
  cond/shield:  2000 veff
Temperature range: flexi-installed: -5° to +50° C
  fix-installed: -30° to +70° C

GAC-4pair foil (15004)

Jacket: PVC, maximaler Ø 10.0 mm Dunkelgrau
Spool size: 250m
Weight/m: 0.18 kg
Weight/spool: 45.00 kg

GAC-12pair foil (15012)    Sold out in Germany  warehouse- Just some pieces in Swiss warehouse left

Jacket: PVC, maximaler Ø17.00 mm Dunkelblau
Spool size: TBA
Weight/m: 0.410 kg
Weight/spool: 90.00 kg


Ordering Information:

Order No. Type Type Colour Spool Size Weight/
Spool
 Shipping Unit
15004 GAC-4paar foil 10.0 mm dark blue 250m 45.00 kg 1x250m HS400
15012 GAC-12paar foil 17.0 mm dark blue 100m 46.00kg 1x100m HS400
