10301 GAC-2/1 Professional balanced installation cable with small diameter and double shield
Balanced double shielded audio cable! Very flexible. Professional installation cable with small diameter, PE-insulation for low capacity. Ideal for fixed installations and rack-wirings. The same construction is used as single element on our range of analog multipair cables snakes 140XX . Same cable is available as FRNC non corrosive version in black 10306
New spring 2025 also on spools each 500m in box (10301-500)
OFC copper at best standards for best performance.
New spring 2025 also on spools each 500m in box (10301-500)
OFC copper at best standards for best performance.

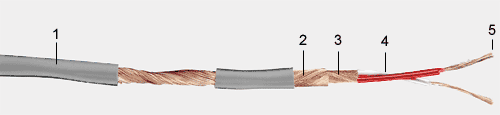

Construction: |
||
| 1 = Jacket: | PVC, Ø 3.5 mm, grey | |
| 2 = Shield No. 1: | Bare copper wires (0.10 mm) 100% coverage | |
| 3 = Shield No. 2: | Bare copper wires (0.10 mm) 100% coverage | |
| 4 = Insulation: | PE, Ø 1.15mm | |
| 5 = Conductor: | Stranded bare copper wires 25 x 0.10mm (0.19mm²) 25x38AWG = 24 AWG | |
Technical Datas: |
||
| Conductor resistance: | < 90 ohm/km | |
| Shielding resistance: | < 20 Ohm/km | |
| Capacitance (at 800Hz): | cond/cond: | < 75 nF/km |
| cond/shield: | < 141 nF/km | |
| Characteristic impedance: | at 20 kHz: | 145 Ohm |
| Test voltage: | cond/cond: | 500 veff |
| cond/shield: | 2000 veff | |
| Operating voltage: | low voltage | |
| Operating voltage: | flexi-installed: | -5° to +50° C |
| fix-installed: | -30° to +70° C | |
Ordering Information:
| Order No. | Type | Diameter | Colour | Spool Size | Weight/ Spool |
Shipping Unit |
|---|---|---|---|---|---|---|
| 10301 | GAC-2/1 PVC | 3.5 mm | gray | 300m | 6.20 kg | 4x300m |
| 10301-500 | GAC-2/1 PVC | 3.5 mm | gray | 500m | 10.50 kg | 1x500m |
