82075 CAT.6 F/UTP Power Hybrid Cable
Hybrid CAT6/Power cable perfect to make interconnect leads for active loudspeaker Dante systems/studio monitors.

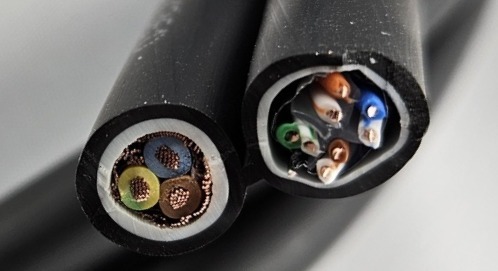

We combine a double shielded CAT6 with a shielded power cable for 230VAC.
| Signal A: CAT.6 F/UTP | ||
 |
||

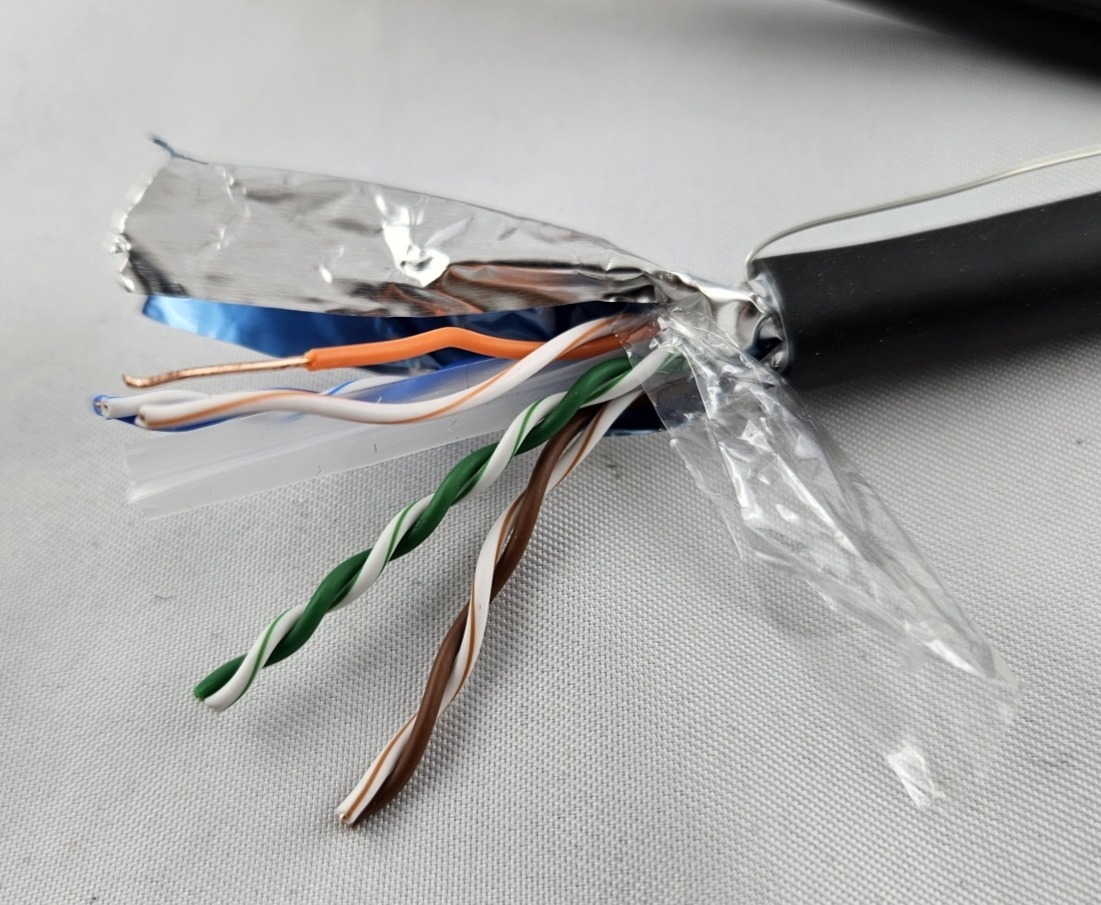

Construction: CAT.6 F/UTP |
||

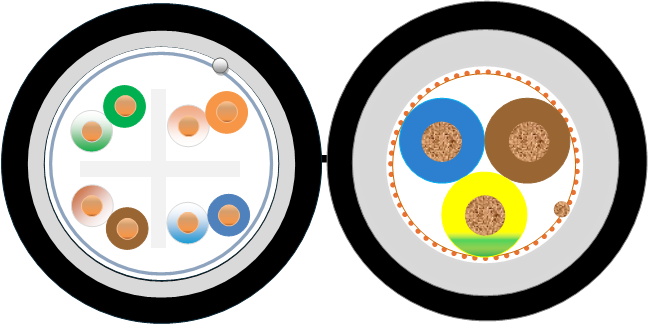

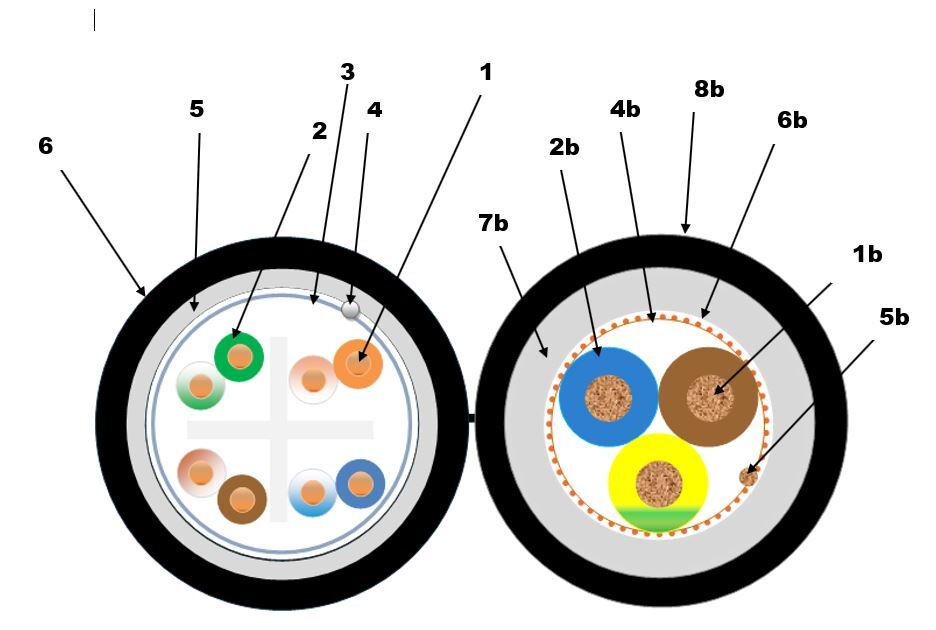

| 1 = Conductor: | Stranded bare copper wires 23 AWG, Ø 0.546-0,574mm | |
| 2 = Insulation: | HDPE - 2YI1, 0,29mm 1,14mm Ø Color code: B-W/B, O-W/O, G-W/G, Br-W/Br |
|
| Twisting: | 4 pairs twisted together + cross web of polyolefin | |
| 3 = Shielding: | ALPET Foil | |
| 4 = Drain Wire | 0,40mm SnCu | |
| 5 = Inner Jacket | PVC, 0,50mm. 6,70mmØ, Gray RAL7035 | |
| 6 = Outer Jacket: | PVC, 0,90mm. 8,50mmØ , Matt Black | |
Technical Datas CAT.6: |
||
| Conductor resistance: | < 82 ohm/km | |
| Capacitance: | cond/cond: | < 56 nF/km |
| Insulation Resistance | ≥ 5000 MΩ.km | |
| Rating voltage: | 72 V | |
| Test Voltage | 1200 veff | |
| Side B: 3 x 0.75mm² Double Shielded Power Cable |
||
Application: Tree conductor signal line for high power. |
||

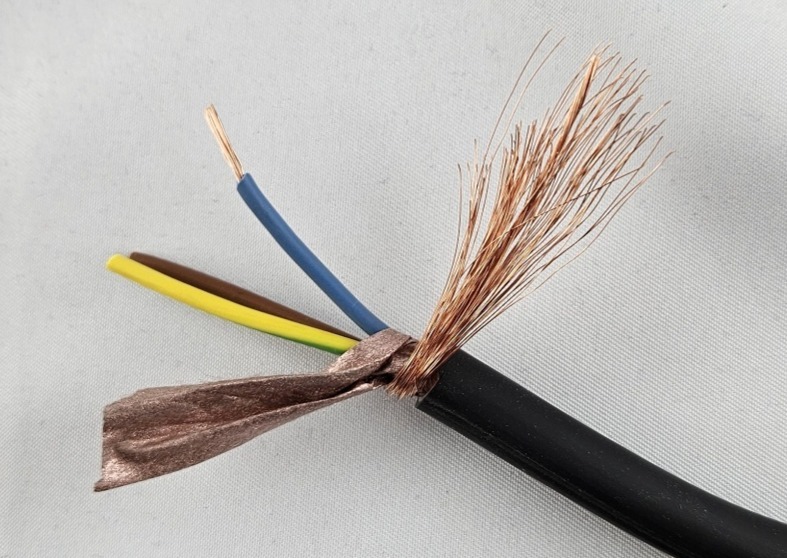

Construction: |
||
| 1b = Conductor: | Bare Copper 24x0,19mm Ø, OFC, 1,08 mm Ø, (0.75mm²) | |
| 2b = Insulation: | PVC - YI1, 0,60mm, 2,30mm Ø Blue – Brown – Yellow/Green Three power cores twisted together |
|
| 4b = Shield 1 | Polyester nonwoven thermally bonded, both sides copper coated K6160 |
|
| 5b = Drain Wire: | Bare copper wires 16x0,19mm Ø OFC | |
| 6b = Shield 2 | Bare copper wires (0,15 mm) 100% coverage | |
| 7b = Inner Jacket | PVC, 0,65mm. 6,70mm Ø, Gray RAL7035 | |
| 8b = Outer Jacket | PVC, 0,90mm. 8,50mmØ , Matt Black | |
Technical Datas: |
||
| Conductor resistance: | < 26 ohm/km | |
| Insulation resistance | ≥ 5000 MΩ.km | |
| Capacitance: | Cond/cond | < 70 nF/km |
| Rating voltage: | 300/500 V | |
| Testing voltage | 2000 veff | |
| Maximum Watts load: | @ current 4.00 Ampere/Line | < 500 Watt |
Ordering Information:
|
Order No.
|
Type
|
Diameter
|
Colour
|
Spool Size
|
Weight/
Spool |
Shipping
Unit |
| 82075 | CAT.6 F/UTP Power Hybrid Cable | 8.5 x 19.2 mm | black | 100m (H327) | 18.50 kg | 1x100m in box |
