11001 GAC-4/1 Starquad 4-conductor microphone cable (11201=FRNC)
|GAC-4/1 (11001) Starquad balanced audio cable (11002 = 300m spool)
GAC-4/1 FRNC (11201) Starquad balanced audio cable
|Gotham "Star-Quad" cables are the most advanced microphone cables presently available. We have combined an ultraflexible PVC-jacket, low capacitive PE insulation, "double Reussen shielding" and quad (4-conductor) construction for a truly professional cable at an affordable price. The "Star-Quad" concept is known and recommended where the RF-rejection is the most important factor and where very long cable runs are needed. As we use each 2 conductors for low and high signal, we reduce the signal loss by 50% and due to the offset of the incoming RF-signal by the way the 4 conductors are twisted, the RF-rejection is over 130dB (25 kHz). The exclusive double shielding does its part of these features as well.
Same construction is available also with FRNC Halogenfree compound.(11201)
LFOC higher grade copper at best standards for best performance.

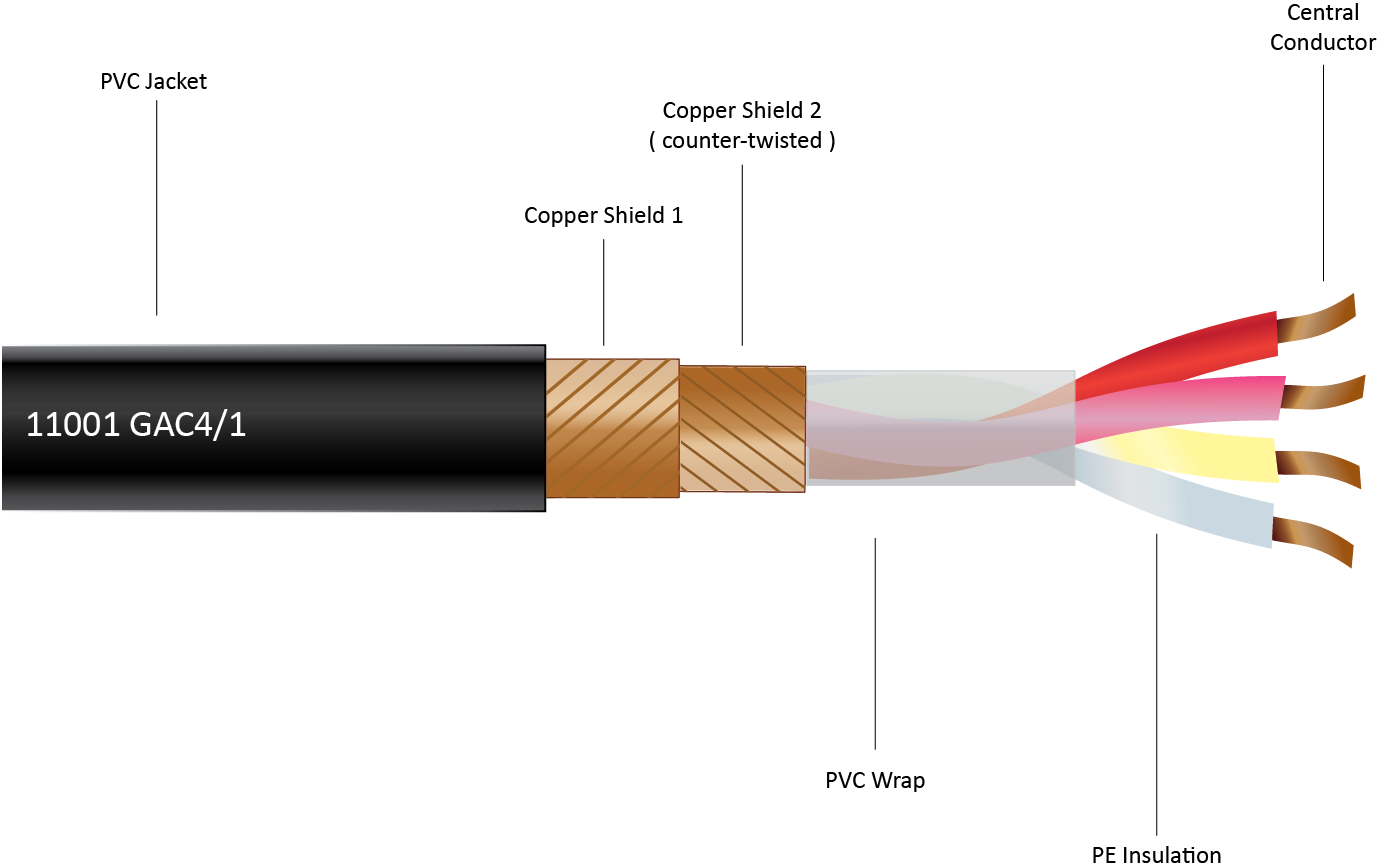

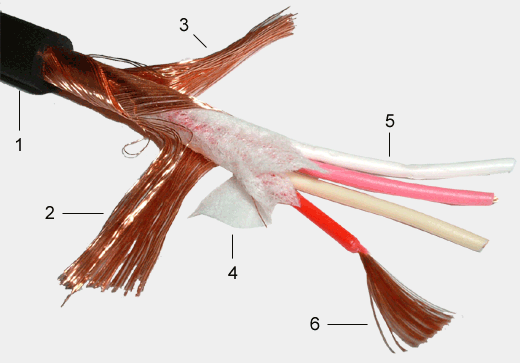

|1 = Jacket:||PVC, Ø 5.4 mm, velvet black (ultrasoft)
11201 = FRNC Material
|2 = Shield No. 1||Bare copper wires (0.10 mm) 100% coverage|
|3 = Shield No. 2||Bare copper wires (0.10 mm) 100% coverage|
|4 = Viscose fiber coat:||counter wrapped to the quad twisted conductors|
|5 = Insulation (cond):||PE, Ø 1.2 mm, white, red, ivory, pink, quad-twisted|
|6 = Conductor:||Stranded bare copper wires 96 x 0.05 mm (0.19 mm²)96x44AWG = 24 AWG|
|Conductor resistance:||< 90 ohm/km|
|Shielding resistance:||< 20 Ohm/km|
|Side circuit capacitance:||single conductor||55 pF/m|
|Side circuit capacitance:||Quad system||135 pF/m|
|Noise attenuation:||130 dB (see wiring)|
|Characteristic impedance:||at 20 kHz:||180 Ohm|
|Test voltage:||cond/cond:||500 veff|
|Operating voltage||low voltage|
|Temperature range:||flexi-installed:||-5° to +50° C|
|fix-installed:||-30° to +70° C|
|Order No.||Type||Type||Colour||Spool Size||Weight/
|11001||GAC-4/1 Starquad PVC||5.4 mm||black||100m||4.70 kg||4x100m|
|11002||GAC-4/1 Starquad PVC||5.4 mm||black||300m||14.10kg||2x300m|
|11201||GAC-4/1 Starquad FRNC||5.4 mm||black||100m||4.70 kg||4x100m|
Retail Prices May 2021:
|Color||**shipping unit||CHF (Swiss Francs)||Export EUR|
|per spool||*per meter||per spool||*per meter|
|11001||GAC-4/1 Starquad PVC||100 m||black||4x100m||303.05||3.75||268.00||3.35|
|11002||GAC-4/1 Starquad PVC||300 m||black||2x300m||909.15||3.75||804.00||3.35|
|11201||GAC-4/1 Starquad FRNC||100 m||black||4x100m||303.05||3.75||268.00||3.35|
FRNC = Flame Retardant Non Corrosive and halogen free (11201)
