85455 3x5.5mm² Magnetic Shielded
Magnetic shielded and double copper shieded power cable for mains power to your Hi-End Audio gear. This cable ensures best transport of needed energy (up to 4'000 Watt and 33 Ampere current) to our device but due to our 100% covered Reussen shielding and additional conductive copper layer (K6160), this is protecting your signal cables nearby even better from humm and RF noise generated by the 50/60Hz signal going tru the power supply cable. With the additional mu-metal tape (6) we are now also able to include a magnetic shield on top of all features. Unique Gotham Audio innovation available in November 2025
This construction is only available from Gotham! No other known competitor!

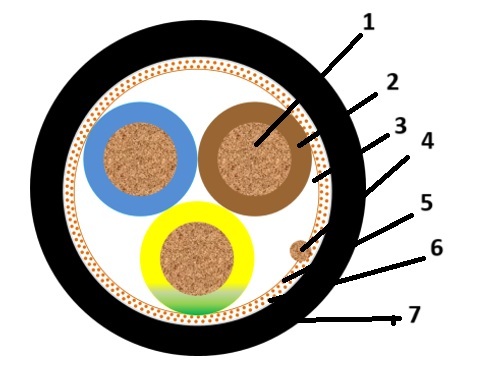

Construction: |
||
| 1 = Conductor: | 105x30AWG(0,25mmØ) bare OFC copper wires, Nominal Diameter 2,97mmØ: 5,50mm² 10 AWG |
|
| 2 = Insulation : | PE – 2YI 1, 0,80mm 4,60mmØ Color code: blue/brown/yellow-green Three power cores twisted together Lay Lenght ̴ 120mm |
|
| 3 = Shield 1: | K6160 Polyester nonwoven thermally bonded, both sides copper coated, counter wrapped to the twisted conductors. |
|
| 4 = Drain Wire | 16x0,19 mmØ Cu (Ground) bare copper | |
| 5 = Shield 2: | Bare copper wires 32AWG(0.20 mm) 100% coverage | |
| 6 = Mu-Metal Shield : #3 | Magnetic shield by Mu-Metal Tape 0.025mm, 100% coverage | |
| 7 = Jacket | Matt PVC (YM2) 1.30mm. 13.50mm Ø Black | |
Technical Datas: |
||
| Conductor resistance: | < 3.50 Ohm/km | |
| Rating Voltage: | 300/500V | |
| Test Voltage: | 2000 Veff | |
| Temperature range: | -30° to +70° C | |
| Maximum Watts load: | @ current 33 Ampere/Line | < 4000 Watt |
Additional shield with K6160 Polyester nonwoven thermally bonded, both sides copper coated
Ordering Information:
|
Order No.
|
Type
|
Diameter
|
Colour
|
Spool Size
|
Weight/
Spool |
Shipping
Unit |
| 85015 | GPC-3x1.5mm² PVC | 7.6 mm | Marineblue | 100m | 11.00 kg | 2x100m |
| 85025 | GPC-3x2.5mm² PVC | 9.5 mm | Marineblue | 100m | 16.50 kg | 2x100m |
| 85215 | GPC-3x1.5mm² FRNC | 8.2 mm | Marineblue | 100m | 10.90 kg | 2x100m |
| 85055 | GPC-3x5.5mm² PVC | 13.0 mm | Marineblue | 100m | 38.00 kg | 1x100m |
| 85455 | GPC-3x5.5mm² MS PVC | 13.0 mm | Black | 100m | 39.00 kg | 1x100m |
made-up leads (Swiss Made)
Link:
mains power cable assemblies
Please inquire via contact and avoid entering all datas. You can also simply send us an email to info@gotham.chNo minimum order!
Please see ordering Information link:
Terms: Prices are in CHF (Swiss Francs), this price is including Swiss Domestic 8.1% VAT. Ex works Dietikon Switzerland. Packing and crate included. You can collect your order in Dietikon w/o any shipping fees.
Sold per meter and standard spools from Swiss warehouse. *Price per meter only charged if not a full spool was ordered.
-
Shipment from stock in Switzerland: we can ship from Swiss sales office in Dietikon Switzerland. No minimum OrderOrders from Swiss warehouse can consolidate other products from our domestic range (such as connectors) and cables could be cut to order and/or even terminated with connectors.
Check possible remnant spools/leftover pieces at special prices from Swiss warehouse!
Link to Sale items
-
shipment from warehouse in Germany: stored in bonded warehouse c/o Bracchi Transport 77955 Ettenheim, (Germany). Attention: German clients and EC clients w/o UID (Vat identification) number will be charged with 19% German VAT in addition! Minimum order for shipments from Germany warehouse is for each line item 1pc standard shipping unit or multiples thereof. Collections at warehouse possible by appointment only and with some restrictions.
**shipping unit/standard spool: The shipping units rules do only apply for orders being shipped from bonded warehouse in Germany. From our Swiss headquarters we can ship any quantity, per cut meter, full spool or shipping unit!
