10561 GAC-2 UltraPro each conductor shielded cable Hi-End Microphone Cable (same 10666)Balanced 5 times shielded audio cable! Ultraflexible professional audio cable for microphones. 'Double Reussen shield', velvet matte non-light reflecting PVC-jacket material.
A unique construction invented by Gotham Audio design.
Each conductor is shielded with a lap shield 100% covering copper wires (7) (Reussen shield) plus a conductive separation layer (6) (Aluminium coated polyester). This conductor is twisted around conductor no 2 and turn is hold in place with another aluminium coated layer, followed by Gotham's unique double Reussen shield. This cable is absolutely uncompromised to achieve maximum shielding possible while the flexibility and durability is still very good and the cable can be used in mobile applications as well.
The cable is built with a stabile 110 ohm impedance and can be used for analog balanced audio signals as well as digital audio signals in the AES-EBU format. Ideal cable for accomodation of XLR-connectors with corresponding 8mm diameter cable claps.
Available as designated AES-EBU cable with purple color (10666), same construction but with purple color.

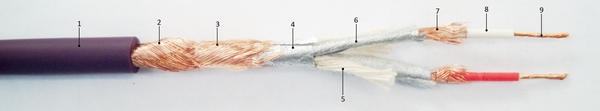

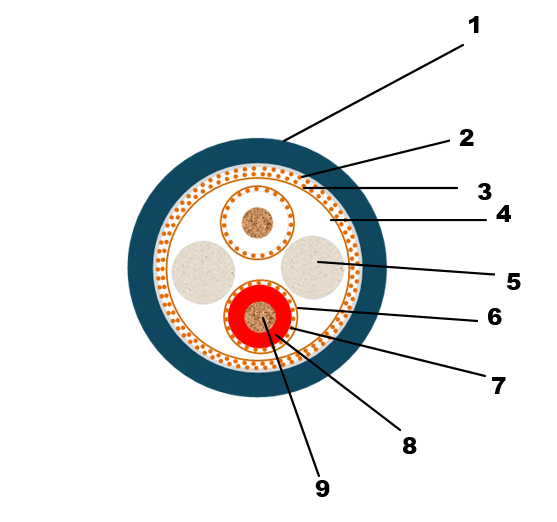

|1 = Jacket:||PVC, max. Ø 8,00 mm in dark blue RAL5013 (10666 in purple as shown)|
|2 = Over all Shield No. 1||Bare copper wires (0.10 mm) 100% coverage|
|3 = Over all Shield No. 2||Bare copper wires (0.10 mm) 100% coverage|
|4 = Layer||Polyester nonwoven thermally bonded, both sides aluminium coated|
|5 = Seperation||Filler material viscose|
|6 = conductor shield layer||Polyester nonwoven thermally bonded, both sides aluminium coated|
|7 = conductor shield||Bare copper wires (0.10 mm) 100% coverage|
|8 = Insulation||Cellular PE, Ø 2.00mm white/red|
|9 = Conductor||Stranded bare LCOF copper wires 64 x 0.10mm (0.50mm²) 64x38AWG = 20AWG|
|Conductor resistance:||max 39 ohm/km|
|Shielding resistance:||< 28 Ohm/km|
|Capacitance:||Conductor/ Cond:||max. 50 nF/km|
|Conductor/Shield:||135 nF /km|
|Test voltage:||2000 veff|
|Temperature range:||flexi-installed:||-5° to +50° C|
|fix-installed:||-30° to +70° C|
|Order No.||Type||Type||Colour||Spool Size||Weight/
|10561||GAC-2 Ultra Pro Conductor shielded||8 mm||dark blue||100m||9.60 kg||2x100m|
Retail Prices May 2021:
|Order Nr.||Analog unbalanced Cables||Length/
|Color||**shipping unit||CHF (Swiss Francs)||Export EUR|
|per spool||* per meter||per spool||* per meter|
|10561||GAC-2 Ultra Pro Conductor shielded||100 m||dark blue||2x100m||1'004.10||12.55||887.90||11.10|
please ask for a quotation here: (link) Enter your order/inquiry with a simple email to email@example.com
Please see ordering Information link:
Terms: Prices are in CHF (Swiss Francs), this price is including Swiss Domestic 7.70% VAT. Ex works Dietikon Switzerland. Packing and crate included. You can collect your order in Dietikon w/o any shipping fees.
Sold per meter and standard spools from Swiss warehouse. *Price per meter only charged if not a full spool was ordered.
- Shipment from stock in Switzerland: we can ship from Swiss sales office in Dietikon Switzerland. No minimum Order
Orders from Swiss warehouse can consolidate other products from our domestic range (such as connectors) and cables could be cut to order and/or even terminated with connectors.
Check possible remnant spools/leftover pieces at special prices from Swiss warehouse!
Link to Sale items
- shipment from warehouse in Germany: stored in bonded warehouse c/o Streck Transport GmbH in Freiburg (Germany). Attention: German clients and EC clients w/o UID (Vat identification) number will be charged with 19% German VAT in addition! Minimum order for shipments from Germany warehouse is for each line item 1pc standard shipping unit or multibles thereof. Collections at warehouse possible by appintment only and with some restrictions.
**shipping unit/standard spool: The shipping units rules do only apply for orders being shipped from bonded warehouse in Germany. From our Swiss headquarters we can ship any quantity, per cut meter, full spool or shipping unit!
Full Pricelists (download) in Euro/US$ and CHF to be found here: Link
For an order/inquiry, please indicate your address and details, indicate product and quantity and requested delivery date.
We also provide an orderform (Doc) you can complete and email or fax to us.
Gotham Cables are available from our Swiss service lab soldered as per your desires.
Each cable is being made in our own service lab by our own staff at highest standards and to your specification.
Visit our soldering department here: LINK
Pricelist made up leads/Cable assemblies from Swiss servicelab
|CHF||CHF Made up Leads Retail price list||updated||Link|
Balanced XLR wiring instruction:
Pin1= shields, Pin2= brown (Signal+), Pin3= white (Signal -).
Should space not allow to solder all strands of the many shields, you can put only each a few strands of each layer of the shields to ground Pin 1. Cut away any spare strands from the shields and secure that no loose strands are hanging around. Use a shrinking tube to avoid short ciricuits. We do not recommend to put any ground to the body shell on either side of your XLR line. The connector shell will get to ground once plugged into a receptacle.
Having your shields put on the connectors shell is dangerous! Imagine, a loose cable can make contact with another loose cable connector having a different ground potential. So the metal connector is conductive and shall not carry your audio ground used on the shieldings of your audio signal. It can interfere with other "grounds" such as video, data of power grounds, which are potentially different! So keep "grounds" separate!
RCA/Phono/Jack unbalanced wiring using balanced wire:
Many clients use our balanced 2 conductor cable also for unbalanced interconnects. In this case we recommend to only use 1 conductor (brown) for your signal and put all other wires or parts thereof to ground with the shields. This will increase your noise protection! However for unbalanced application we do have our perfect unbalanced wires 1001x, and 1000x.
Unbalanced Stereo & 2 Channels (loop) application:
We actually do not support the idea to use a 2 conductor cable for stereo unbalanced wiring, however it will be done and can be made with acceptable compromise regarding crosstalk and similar. Again all the shields to ground but not to the body shell of your XLR connector. Check our perfect stereo cables 12001/13001 or our conductor shielded Starquad 11301 for real quality stereo wiring!
