GAC-xx Pair mini AES Hi-Flex digital snake 110 Ohm 4-12 Paar

Ultraflexible multipair cables for AES/EBU digital audio data. Highly stabilized 110 Ohm impedance guaranteed with our unique Star-Quad "Twinax"-construction. Compact size so that the cable will easily fit in small connectors (GAC-8pair AES/EBU will fit in 25-pin D-SUB connectors) but still perform excellent electrical specifications.
LFOC higher grade copper at best standards for best performance.
This cable is also capable to be used for DMX or analog audio signals..

Using the GAC-2/mini AES single pair cable as the element for our range of multipair digital cables (except for the GAC-12pair foil AES), we offer now 4-, 8-, and 12-pair flexible cables. (For technical data please refer to GAC-2/mini AES 10620). Numerical identification on each pair. Sold also per meter.

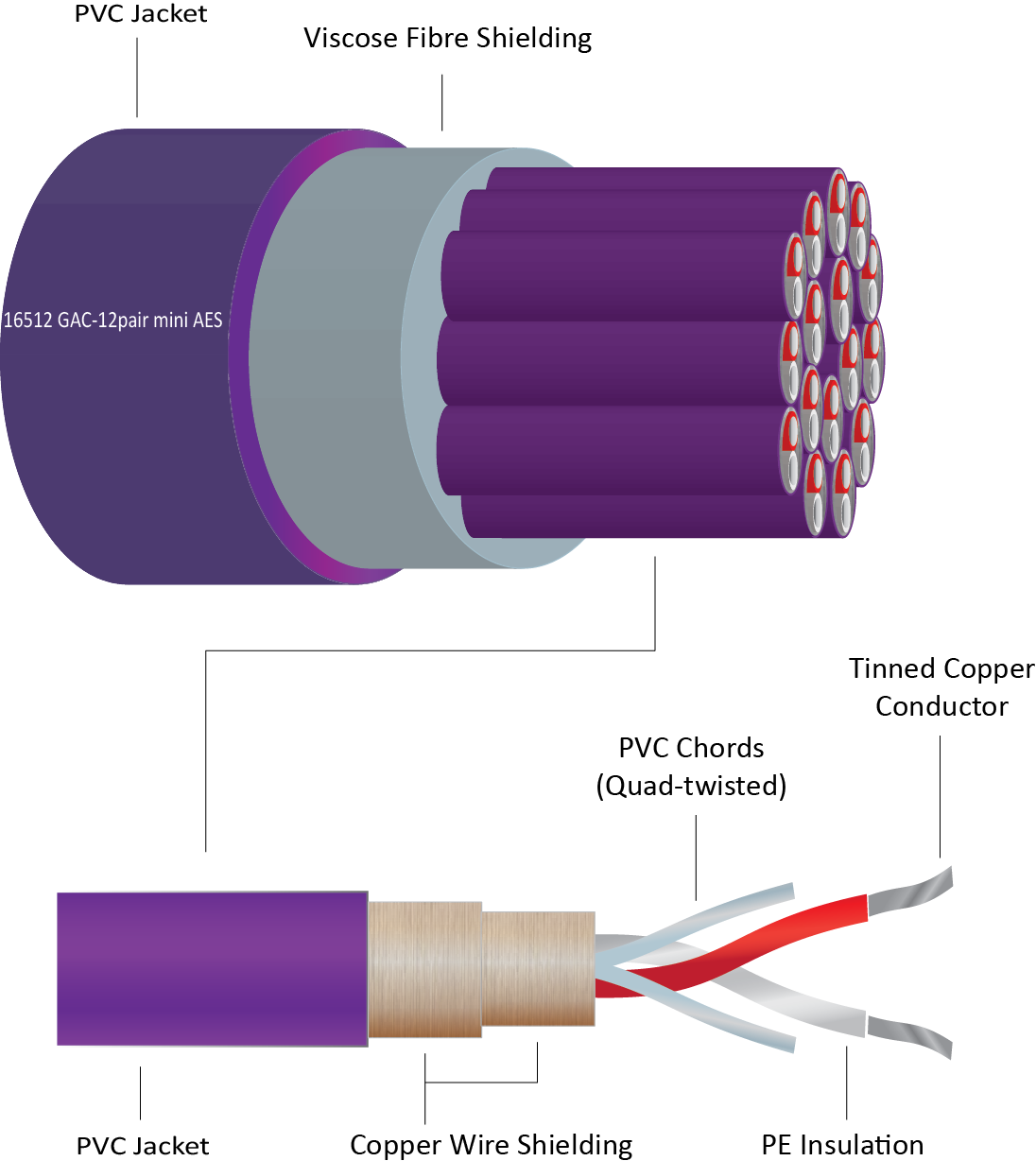

Construction of Multipair: (similar to  10620 GAC-2 mini AES/EBU)

1 = Jacket: PVC, purple
2 = Viscose fiber coat: Counter wrapped
3 = Jacket: PVC, Ø 3.6 mm
4 = Shield No. 1: Bare copper wire (0.10 mm) 100% coverage
5 = Shield No. 2: Bare copper wire (0.10 mm) 100% coverage
6 = Cord(2): 'PP', quad twisted with 2 conductors
7 = Insulation: Scum-'PP', Ø 1.15mm, white and red
8 = Conductor: Stranded tinned copper wires 19 x 0.1 mm (0.15mm²)

Technical Datas:

Conductor resistance:    < 115 ohm/km
Shield resistance:    < 20 Ohm/km
Capacitance:    < 40 nF/km
Impedance   < 110 Ohm/km
Attenuation: at 1 MHz: < 3 dB/100m
  at 6 MHz: < 7.5 dB/100m
Temperature range: flexi-installed: -5° to +50° C
  fix-installed:: -30° to +70° C


GAC-4pair mini AES/EBU (16504)

Jacket: PVC, maximaler Ø 11.0 mm Purpur
Spool size: 250m
Weight/m: 0.20 kg
Weight/spool: 50.00 kg


GAC-8pair mini AES/EBU (16508)

Jacket: PVC, maximaler Ø 15.0 mm Purpur
Spool size: 200m
Weight/m: 0.30 kg
Weight/spool: 60.00 kg



GAC-12pair mini AES/EBU (16512)

Jacket: PVC, maximaler Ø 18.00 mm Purpur
Spool size: 200m
Weight/m: 0.40 kg
Weight/spool: 80.00 kg


Ordering Information:

Order No. Type Type Colour Spool Size Weight/
Spool
 Shipping Unit
16504 GAC-4pair AES mini 11.0 mm Purple 250m 50.00 kg 1x250m HS400
16508 GAC-8pair AES mini 15.0 mm Purple 200m 60.00kg 1x200m HS400
16512 GAC-12pair AES mini 18.0 mm Purple 200m 80.00kg 1x200m HS400


Retail Prices:


Order No. Flexible Digital Multipaar Cables Length/
Spool
Color **Export shipping unit CHF (Swiss Francs) € (Euro)
per spool * per meter per spool * per meter
16504 GAC-4pair mini AES max. 250 m purple  1x250m 1'512.00  6.05 1'333.35 5.35
16508 GAC-8pair mini AES max. 200 m purple  1x200m 2'311.20 11.55 2'038.10 10.20
16512 GAC-12pair mini AES max. 200 m purple  1x200m 3'348.00 16.75 2'952.40 14.75


Please see ordering Information link:
Terms: CHF (Swiss Francs) Price is including Swiss Domestic 7.70%  VAT.
Ex works Dietikon Switzerland. Packing and crate included. You can collect your order in Dietikon w/o any shipping fees.

Sold per meter as per your order. We cut every cable to your order. Maximum continus lenght is a standard spool.

*Price per meter charged per actual measurement. We can only sell / invoice full meters.

Shipment from stock in Switzerland:  we can ship from Swiss sales office in Dietikon Switzerland. No minimum Order
Orders from Swiss warehouse can consolidate other products from our domestic range (such as connectors) and cables could be cut to order and/or even terminated with connectors.
