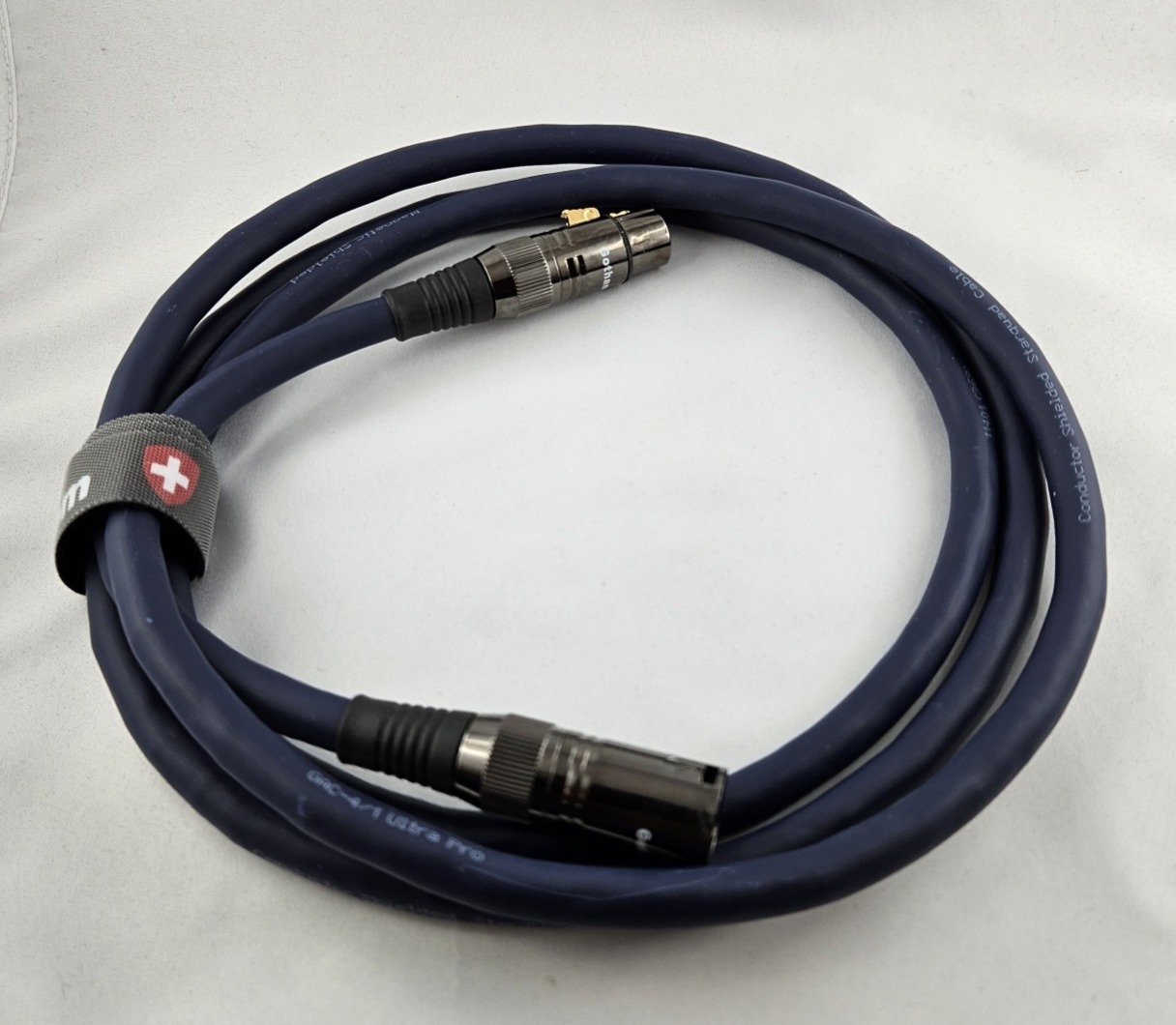

Ultra Pro XLR Cable 10561

Hi-End 2 core  conductor shielded XLR Mikrophone cable  (balanced)

Construction:

Wire: GAC-2 UltraPro  10651  each conductor shielded cable Hi-End Microphone Cable. Available also in purple colour 10666

Balanced 5 times shielded audio cable! Ultraflexible professional audio cable for microphones. 'Double Reussen shield', velvet matte non-light reflecting PVC-jacket material.
A unique construction invented by Gotham Audio design.
Each conductor is shielded with a lap shield 100% covering copper wires (7) (Reussen shield) plus a conductive separation layer (6) (Aluminium coated polyester). This conductor is twisted around conductor no 2 and turn is hold in place with another aluminium coated layer, followed by Gotham's unique double Reussen shield. This cable is absolutely uncompromised to achieve maximum shielding possible while the flexibility and durability is still very good and the cable can be used in mobile applications as well.
The cable is built with a stabile 110 ohm impedance and can be used for analog balanced audio signals as well as digital audio signals in the AES-EBU format. Ideal cable for accomodation of XLR-connectors with corresponding 8mm diameter cable claps.
Available as designated AES-EBU cable with purple color (10666), same construction but with purple color.

Connector:  Gotham Connector  GCXLRFemale1BK/male1BK (Pro-Serie with gold Contacts) XL strain releif -12mm.

alternative :  Neutrik NCX3FXX / NCX3MXX  XL strain releif -12mm. Orther connectors on request. We can not use our also available XLR from Switchcraft due to large cable diameter. .


10561/10666
conductor shielded  and double Reussen shielded
Neutrik


NCX3FXX / NCX3MXX



Retail Prices / Ordering Information: April 2018

Order Nr. Cable type   Connector Length Price each +/- 1m
CHF  EUR CHF  EUR
KO10561GCXLR03 GAC-2 Ultra Pro 10561/10666 GC-XLRFemale1BK/Male1BK 3.0m 111.15 96.65 11.10 9.80
KO10561NTXLR03

GAC-2 Ultra Pro

10561 Blue
10666 Purple

NCX3FXX / NCX3MXX /color

3.0m 119.80 104.15 11.10 9.80


+/- 1m You can adjust the desired cable length!
Prices indicated are always per piece with 3 meter length. If you need a pair, please order 2pc. We assemble each cable manually in our own lab in Dietikon. Allow a few days delivery delay. Some stock available for immediate shipment. We can only invoice full meters but you can ask your cable per cm specifyed. Therefore 1.50 meter would be charged like 2.00 meter. We will confirm/quote correct price/delivery after receipt of your inquiry/order.
shipped from Switzerland:  we can only ship from Swiss sales office in Dietikon Switzerland.
No minimum Order. We are not part of EC, carefully check possible import fees and local VAT. Euro Prices are w/o VAT.

simple order per email here:    7.70 % Swiss VAT included in CHF Sales Price!
No VAT included in Euro prices.
Ex works Dietikon Switzerland. Packing and crate included.
You can collect your order here w/o any shipping fees by appointment.


please ask for a quotation here: (link)

Please indicate your address and details, indicate product and quantity and requested delivery date.


Starquad wiring instruction:
In order to benefit from the Starquad concept you need to wire the 4 conductors for you balanced audio cable as follows: (See wiring diagram below)
Bundle each opposite (Star) conductor together, we made colour code easy to identify the opposite conductor. (red/pink and white/ivory each belong together.)
Pin2= red&pink (Signal+),  Pin3= white&ivory (Signal -). Pin1= shield 1&2 =Ground
Put each a few strands of each layer of the shields together to ground Pin 1 should you not have space for all shielding strands.
Cut away any spare strands from the shields and secure that no loose strands are hanging around. Use a shrinking tube to avoid short circuits.
We do not recommend putting any ground to the body shell on either side of your XLR line. The connector shell will get to ground once plugged into a receptacle.
RCA/Phono/Jack unbalanced wiring:
Many clients use our 4 conductor cable also for unbalanced interconnects. In this case we recommend to only use 1 conductor (red) for your signal and put all other wires or parts thereof to ground with the shields. This will increase your noise protection! However for unbalanced application we do have our perfect unbalanced wires 1001x, and 1000x.
Stereo & 2 Channels application:
We actually do not support the idea to use a Starquad cable for stereo wiring, however it will be done and can be made with acceptable compromise regarding crosstalk and similar. If you use the cable as stereo line, use red/white for channel 1 and pink/ivory for channel 2. And again, all the shields to ground but not to the body shell of your connector.
Check our perfect stereo cables 12001/13001 or our conductor shielded Starquad 11301 for real quality stereo wiring!



Video "do it yourself" Konfektion Starquad auf XLR Stecker

-XLR Starquad mit 11001 auf QGP Stecker


Our onlineshop is offline right now. Please inquire via Contact and avoid entering all datas, you can simply send us an email to info@gotham.ch and we will  quote with our ERP system. Link Contact


Video Konfektion "10405"  Do it yourself!

QR-Code
