3 Conductor to XLR (Neumann) Microphone cable wiring instruction

How to wire 3-Conductor cables to XLR connectors:

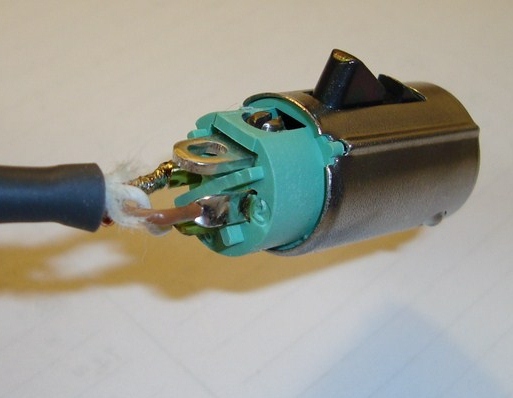

3 Conductor cables 10701/10801  will best be wired/soldered as follows:

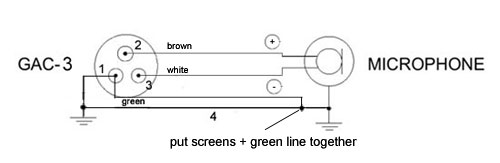

Each conductor to each Pin:  Pin1= green plus shields, Pin2= brown (Signal+),  Pin3= white (Signal -). Put each a few strands of each layer of the shields together with the green conductor to the ground Pin 1.
Cut away any spare strands from the shields and secure that no loose strands are hanging around. Use a shrinking tube to avoid short circuits. We do not recommend to put any ground to the body shell on either side of your XLR line. The connector shell will get to ground once plugged into a receptacle. The round construction of a 3 conductor cable will give many more moving cycles to your interconnect cable as the perfect round cable will distribute/allow any movement in any direction of the cables bending point at the connectors strain relief. This will give an extremely better (longer) lifespan of your cable.


RCA/Phono/Jack unbalanced wiring: Many clients use our 3 conductor perfect round cable also for unbalanced interconnects. In this case we recommend to only use 1 conductor (brown) for you signal and put all other wires or parts thereof to ground with the shields. This will increase your noise protection! However for unbalanced application we do have our perfect unbalanced wires 1001x, and 1000x.


+/- 1m You can adjust the desired cable length!
Prices indicated are always per piece with a 3 meter length. If you need a pair, please order 2pc. We assemble each cable manually in our own lab in Dietikon. Allow a few days delivery delay. Some stock available for immediate shipment. We can only invoice full meters but you can ask your cable per cm specified. Therefore 1.50 meter would be charged like 2.00 meter. We will confirm/quote correct price/delivery after receipt of your inquiry/order. All cables are made individually and indicated dimensions and lenght are
estimated and possible tolerances of +/- 3% are possible. All cables are per piece, if you like a pair you need to order 2pc please.
Shipped from Switzerland:  Cable assemblies we can only ship from Swiss sales office in Dietikon Switzerland.
No minimum Order. We are not part of EC, carefully check possible import fees and local VAT. Euro Prices are w/o VAT.

simple order per email here:    7.70 % Swiss VAT included in CHF Sales Price!
No VAT included in Euro prices.
Ex works Dietikon Switzerland. Packing and crate included.
You can collect your order here w/o any shipping fees by appointment.



Gotham Cables are available from our Swiss service lab soldered as per your desires. Each cable is being made in our own service lab by our own staff at highest standards and to your specification.
