Hi-End Starquad audio interconnect cables for analoge audio (XLR)Balanced analogue audio cables (Microphone leads) are built to protect the relative low-level signal from RF influences picked up at the cable runs.
Wire: GAC-4/1 ultraPro 11301
Starquad Cables:Gotham "Star-Quad" cables are the most advanced microphone cables presently available. We have combined an ultraflexible PVC-jacket, low capacitive PE insulation, "double Reussen shielding" and quad (4-conductor) construction for a truly professional cable at an affordable price. The "Star-Quad" concept is known and recommended where the RF-rejection is the most important factor and where very long cable runs are needed. As we use each 2 conductors for low and high signal, we reduce the signal loss by 50% and due to the offset of the incoming RF-signal by the way the 4 conductors are twisted, the RF-rejection is over 130dB (25 kHz). The exclusive double shielding does its part of these features as well
Balanced 5 times shielded audio cable! Ultraflexible professional audio cable for microphones. 'Double Reussen shield', velvet matte non-light reflecting PVC-jacket material. Gold plated state of the art connectors (Neutrik NC3FXX/NC3MXX with large Cable clamp) are recommended by Gotham for this application. We solder leads with Gotham Cables and Audio connectors at your choice. See below or inquire you speciallly made cable per Email 8,8 mm Ø, super flexible with unique additional shielding laywer to separate shield and conductors. A unique construction new invented by Gotham design.)

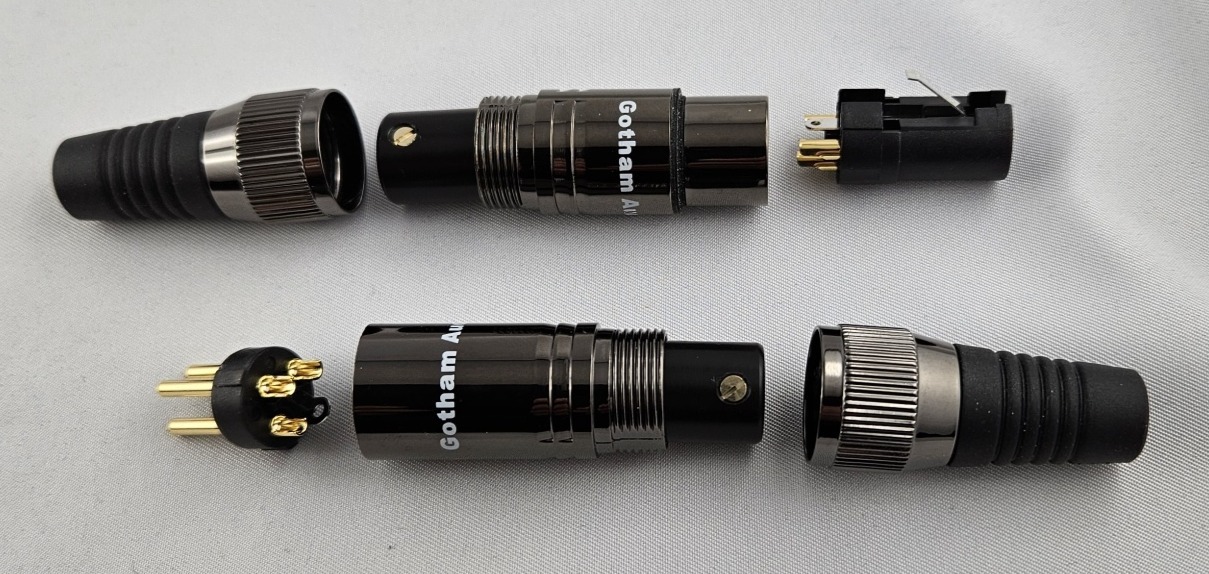

Connector: Gotham Connector GCXLRFemale1BK/male1BK (Pro-Serie with gold Contacts) XL strain releif -12mm.
alternative : Neutrik NCX3FXX / NCX3MXX XL strain releif -12mm. Orther connectors on request.
We can not use our also available XLR from Switchcraft due to large cable diameter.
|"ultimative Audio Cable!" Starquad 11301
NCX3FXX / NCX3MXX black
Retail Prices / Ordering Information: April 2018
|Order Nr.||Cable type||color||Connector||Length||Price each||+/- 1m|
|KO11301GCXLR03||GAC-4/1 ultraPro 11301||11301
GAC-4/1 ultraPro 11301
NCX3FXX / NCX3MXX black
+/- 1m You can adjust the desired cable length!
Prices indicated are always per piece with a 3 meter length. If you need a pair, please order 2pc. We assemble each cable manually in our own lab in Dietikon. Allow a few days delivery delay. Some stock available for immediate shipment. We can only invoice full meters but you can ask your cable per cm specifyed. Therefore 1.50 meter would be charged like 2.00 meter. We will confirm/quote correct price/delivery after receipt of your inquiry/order. All cables are made individually and indicated dimensions and lenght are
estimated and possible tolerances of +/- 3% are possible. All cables are per piece, if you like a pair you need to order 2pc please.
No minimum Order. We are not part of EC, carefully check possible import fees and local VAT. Euro Prices are w/o VAT.
simple order per email here: 7.70 % Swiss VAT included in CHF Sales Price!
No VAT included in Euro prices. Ex works Dietikon Switzerland. Packing and crate included.
You can collect your order here w/o any shipping fees by appointment.
please ask for a quotation here: (link)
Please indicate your address and details, indicate product and quantity and requested delivery date.
Our onlineshop is offline right now. Please inquire via Contact and avoid entering all datas, you can simply send us an email to firstname.lastname@example.org and we will quote with our ERP system. Link Contact
Starquad wiring instruction:
In order to benefit from the Starquad concept you need to wire the 4 conductors for you balanced audio cable as follows: (See wiring diagram below)
Bundle each opposite (Star) conductor together, we made colour code easy to identify the opposite conductor. (red/pink and white/ivory each belong together.)
Pin2= red&pink (Signal+), Pin3= white&ivory (Signal -). Pin1= shield 1&2 =Ground
Put each a few strands of each layer of the shields together to ground Pin 1 should you not have space for all shielding strands.
Cut away any spare strands from the shields and secure that no loose strands are hanging around. Use a shrinking tube to avoid short circuits.
We do not recommend putting any ground to the body shell on either side of your XLR line. The connector shell will get to ground once plugged into a receptacle.
RCA/Phono/Jack unbalanced wiring:
Many clients use our 4 conductor cable also for unbalanced interconnects. In this case we recommend to only use 1 conductor (red) for your signal and put all other wires or parts thereof to ground with the shields. This will increase your noise protection! However for unbalanced application we do have our perfect unbalanced wires 1001x, and 1000x.
Stereo & 2 Channels application:
We actually do not support the idea to use a Starquad cable for stereo wiring, however it will be done and can be made with acceptable compromise regarding crosstalk and similar. If you use the cable as stereo line, use red/white for channel 1 and pink/ivory for channel 2. And again, all the shields to ground but not to the body shell of your connector.
Check our perfect stereo cables 12001/13001 or our conductor shielded Starquad 11301 for real quality stereo wiring!
